DC-DC Power Module 25W

Rating:
96% of 100
SKU: DFR0205 Brand: DFRobot

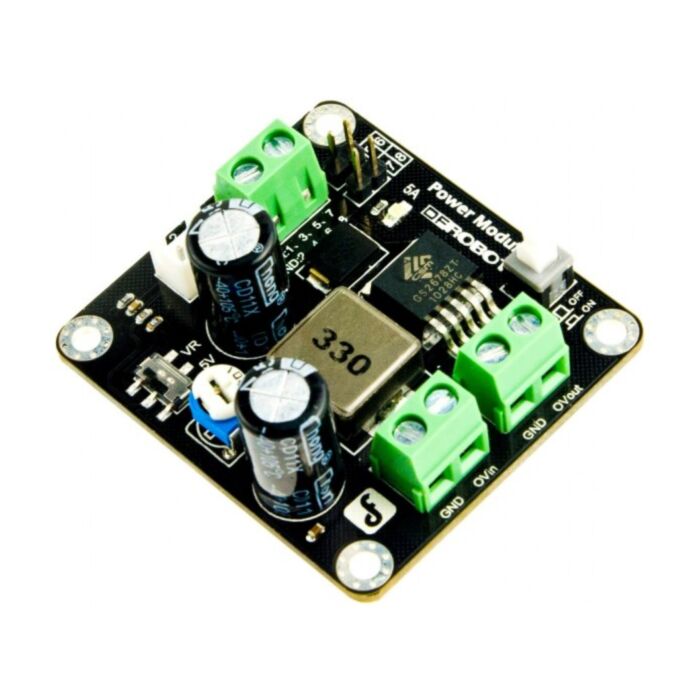

This Power Module is a small size 5A 350KHz 25V Buck DC to DC Converter.It can convert any DC voltage between 3.6V-25V to a selectable voltage from 3.3V to 25V. You can choose 5V direct output voltage with the switch or adjust the output voltage by the blue&white resistor.
$14.25 AUD, inc GST
$12.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $12.44 (exc GST)
  • 25+ $12.05 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This Power Module is a small size 5A 350KHz 25V Buck DC to DC Converter.It can convert any DC voltage between 3.6V-25V to a selectable voltage from 3.3V to 25V.

You can choose 5V direct output voltage with the switch or adjust the output voltage by the blue&white resistor.It is onvenient for you to choose three different interfaces of output.The Ovout interface can output the original voltage of input.so that can be used as the power of other module.

The ON/OFF button on the board can be pulled high to turn the converter module on and low to turn it off.

Cautions: The input voltage must be higher than output voltage.

Specifications

  • Input voltage range: 3.6V-25V
  • Output adjustable range: 3.3V-25V
  • Constant output current: 5A@5V
  • Max Output Power: 25W
  • Switching Frequency: 350KHZ
  • Three different output interface
  • One interface of original voltage output
  • Dimensions:
    • Module size: 46x50x20 mm
    • Mounting hole diameter: 3.2 mm
    • Mounting hole spacing: 39.5 x 44.5 mm

Documents

Parts List

  • Power Module (1 unit)
