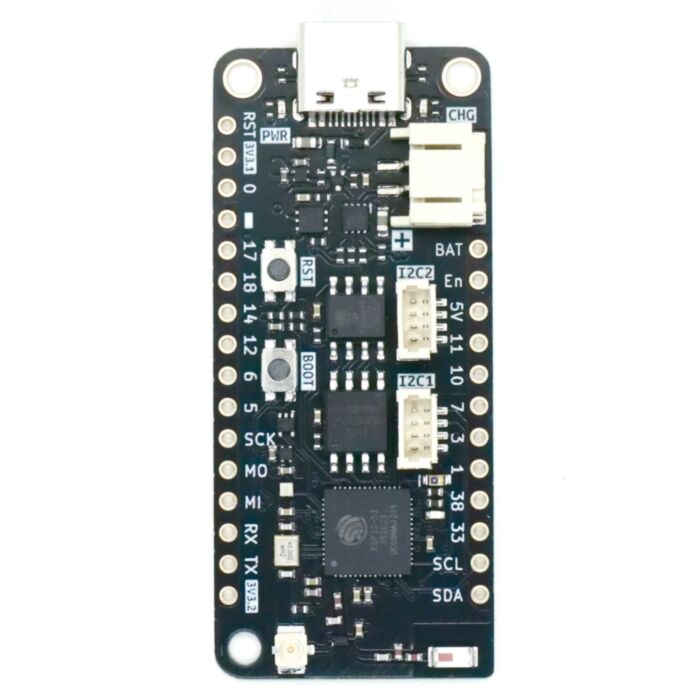

FeatherS3 [D] ESP32-S3 Development Board

SKU: CE10241 Brand: Unexpected Maker

The ESP32-S3 in the Feather Format with a few more features than the average board!

$39.34 AUD, inc GST
$35.76 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 28 and Jul 29

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Unexpected Maker FeatherS3 [D] delivers powerful ESP32-S3 performance in a Maker-loved board configuration

Designed with robust power management, built-in LiPo charging, USB-C with protection circuitry, and two STEMMA QT connectors, the FeatherS3 [D] enables effortless project builds- from wireless data loggers to low-power controllers. The 21 GPIO pins are broken out and full FeatherWing compatibility, allowing this board to be prototyped with in a breadboard, or baked into a custom configuration in a project.

Technical Specifications

  • Microcontroller: ESP32-S3, 32-bit dual-core 240 MHz with RISC-V ultra-low-power coprocessor
  • Wireless: 2.4 GHz WiFi (802.11 b/g/n); Bluetooth 5, BLE + Mesh
  • Memory: 16 MB QSPI flash; 8 MB additional QSPI PSRAM
  • Power: Dual 700 mA 3.3 V LDO regulators; ultra-low deep-sleep current
  • USB-C: Reverse-feed protection plus USB-serial JTAG interface
  • Battery: LiPo charging circuit; VBAT voltage measurement; 5 V presence detection
  • LEDs: Low-power RGB; power (red) and charge (orange) status indicators
  • Connectors: 2 × STEMMA QT (Qwiic compatible), JST-PH 2.0 mm for LiPo
  • GPIO: 21 pins accessible via headers (Feather layout)
  • Antennas: Onboard high-gain 3D antenna and u.FL external connector (switchable in software via RF switch; onboard selected by default for safety)
  • Dimensions: 52.3 mm × 22.9 mm; maximum thickness 6.6 mm (at JST battery port)

Compatibility

Platform Details
CircuitPython Pre-installed UF2 bootloader; easily updatable from circuitpython.org
ESP-IDF Supported for C/C++ development with Espressif SDK
MicroPython Community builds available
Arduino ESP32-S3 board support for Arduino IDE
PlatformIO Multi-platform environment via Visual Studio Code or CLI

Additional Resources

What’s Included

  • FeatherS3 [D] board
  • Colour pinout reference card
  • Unassembled male headers
