Raspberry Pi DAC+

Rating:
100% of 100
SKU: CE07561 Brand: Raspberry Pi Guides (1)

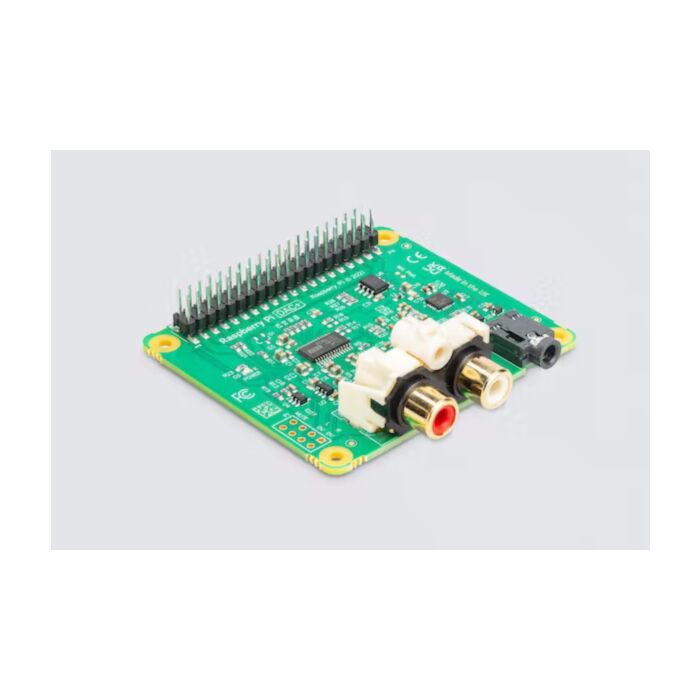

The Raspberry Pi DAC+ is an audio output HAT for all generations of Raspberry Pi from Raspberry Pi 1 Model B+ onwards, and supports 24‑bit 192kHz high-resolution digital audio. It uses the Texas Instruments PCM5122 DAC to deliver stereo analogue audio to a pair of phono connectors, and also supports a dedicated headphone amplifier.

$31.40 AUD, inc GST
$28.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10-25 $27.69 (exc GST)
  • 25+ $27.12 (exc GST)
- +

274 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Pi is an ideal candidate for streaming high-definition audio straight to your HiFi system or headphones, with one critical flaw, the Pi doesn't have a proper DAC! This HAT well and truly fixes that, with a low-noise DAC IC from TI, and the outputs you need to connect to your analog system.

This is Raspberry Pi's mid-range DAC board, boasting solid components, outputs, and layout, sitting below their top-teir DAC Pro HAT

If you're looking to wrap all this up in a snazzy case, the HighPi Pro case fits around a Pi and this HAT like a glove (other cases have trouble with this HAT)

Features

  • Utilises the Texas Instruments PCM5122 DAC to deliver great low-noise stereo audio through two possible outputs:
    • RCA Line-level outputs
    • Dedicated amplified 3.5mm headphone port
  • Pre-programmed EEPROM for plug-and-play recognition by a Raspberry Pi
  • Good software support with and Volumio, Max2Play, and Roon

Specifications

  • Based on TI’s PCM5122 DAC IC
  • Uses the following pins on your Pi's 40-Pin header:
    • All power pins
    • All ground pins
    • GPIO 2/3 for I2C
    • GPIO 18/19/20/21 for I2S

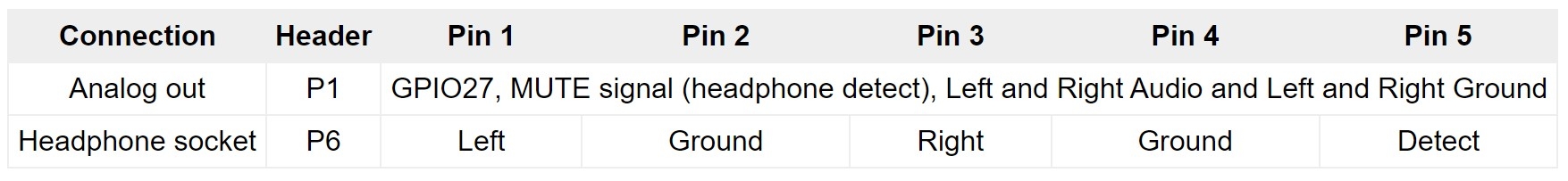

  • Outputs to the pins as follows:
  • Table showing output pins

Dimensions

  • 65x57x25 mm standalone
  • Around 65x57x31 mm stacked on a Pi

What's in the Box

  • 1x Raspberry Pi DAC+
  • 4x 9mm M2.5 standoffs
  • 8x M2.5 screws

Documents and Resources

Changelog

This product was renamed from IQaudio DAC+ to Raspberry Pi DAC+ in November 2022, a firmware update may be required for the newest revision of the hardware. The full change notice is available here.
