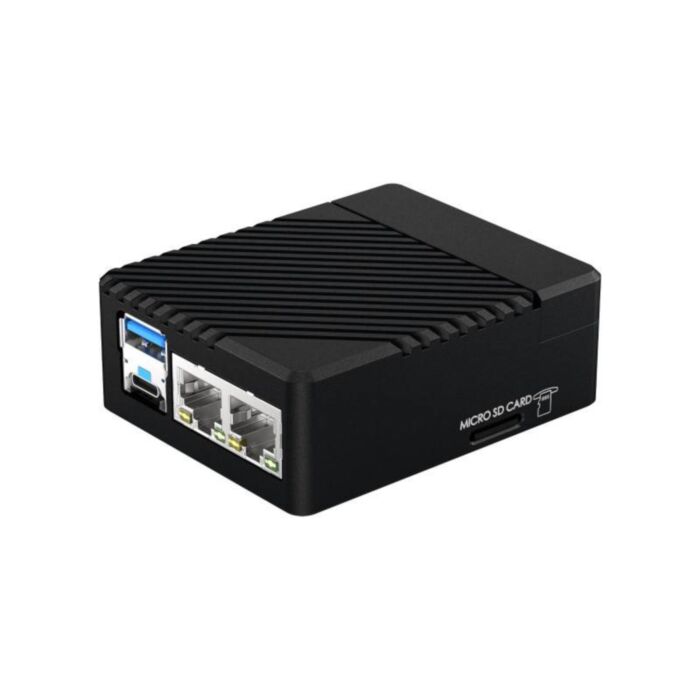

Mini-Computer Kit for CM5 (Dual Gigabit, Board and Case)
Available with a lead time
Expect dispatch between May 21 and May 26
Details
Mini, Practical And Neat
Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products
* Please refer to the Package Content for detailed part list
CM5-DUAL-ETH-MINI
the dual Gigabit Ethernet base board only
CM5-DUAL-ETH-MINI-BOX
In addition to the dual Gigabit Ethernet base board, it is equipped with Aluminum Alloy case and 27W power supply
Provides better protection for the base board along with efficient heat dissipation
| CM5 socket | suitable for all variants of Compute Module 5 |
|---|---|
| Networking | Dual Gigabit Ethernet RJ45 connectors |
| USB | USB 3.0 port |
| PIN HEADER | Raspberry Pi 40PIN GPIO header |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan header | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| Power input | 5V, Type-C interface |
| Dimensions | the base board: 55.0 × 68.0mm |
| with metal case: 61.0 × 75.0 × 27.5mm |
| CM5 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | Gigabit ETH | 40PIN GPIO | PCIe | USB? | MIPI | HDMI | RTC | Fan Header? | Power Input | Features | ||
 NANO A | v | 3.0×1 | ×2 | SH1.0 | v | 5V | CM5 sized | |||||
 NANO B | ×1 | v | 16PIN PCIe | 3.0×1 | ×2 | v | SH1.0 | v | 5V | CM5 sized | ||
 mini Base A | ×1 | v | 16PIN PCIe | 3.0×2 2.0×2 | ×2 | ×2 | ML/CR1220 | v | 5V | mini size | ||
 mini Base B | ×1 | v | M.2 M KEY | 3.0×2 2.0×2 | ×2 | ×2 | ML/CR1220 | v | 5V | mini size, onboard EEPROM and encryption chip | ||
 Mini Dual Gigabit | ×2 | v | 3.0×1 | SH1.0 | v | 5V | dual ETH | |||||
 PoE Base | v | ×1 | v | M.2 M | 3.0×2 2.0×2 | ×2 | ×2 | ML/CR1220 | v | 5V | USB×4 | |
 Raspberry Pi official | ? | ×1 | v | M.2 M | 3.0×2 | ×2 | ×2 | ML/CR1220 | v | 5V | Official IO base board | |
| Note | ? USB 3.0 is equivalent to USB 3.2 Gen1. ? Unless otherwise specified, the Fan header usually is JST-SH type connector. ? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). | |||||||||||
standard CM5 socket and 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module
each cut-out is completely aligned with the connector
- Comes with anti-slip rubber (unassembled)
- PSW button, for system power ON/OFF control without frequent plugging and unplugging of the power supply
- Antenna connector, for connecting antenna to build a wireless router
- BOOT button, for setting the programming mode
- LED indicator for monitoring the working status of the system
- TF card slot, precise cut-out with clear label
Adopts Magnetic removable top with location columns, easy to fix and
better protection for the GPIO pins
Metal case for large area thermal conductivity and heat dissipation
Combined with heatsink fins for more efficient cooling
Suitable for Raspberry Pi or other industrial occasions with special function requirements
1. Remove the bottom screws then the bottom panel.
2. Gently push the Ethernet port and take out the CM5 mini base board.
3. Paste the thermal tapes on the front and back sides of the CM5, then install the CM5 to the base board
4. Install the base board to the metal case, fix the bottom panel, then insert the TF card and power on.
- 40PIN GPIO header
for connecting sorts of HAT - CM5 socket
suitable for all variants of Compute Module 5 - PSW button
- BOOT button
- RTC battery header
for connecting rechargeable RTC battery - FAN header
for connecting cooling fan, allows speed adjustment and measurement - RJ45 Gigabit Ethernet ports
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM5 original network port
ETHERNET 1: PCIe extended network port
- USB3.2 Gen1 Type-A port
for connecting sorts of USB devices - Type-C port
5V power supply, or used for eMMC programming - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM5 versions with wireless
BT_DIS: Bluetooth disabled, only for CM5 versions with wireless - Indicators
Red light: indicating the power supply status of Raspberry Pi
Green light: indicating the working status of Raspberry Pi
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Weight: 0.141 kg
Quick Overview
CM5-DUAL-ETH-MINI
CM5-DUAL-ETH-MINI x1
CM5-DUAL-ETH-MINI-BOX
- CM5-DUAL-ETH-MINI + metal case (assembled) x1
- Thermal tape 5PCS x1
- Black thermal tape x1
- Black anti-slip rubber 4PCS x1
- OPTIONS 27W power adapter x1
- Screwdriver x1
