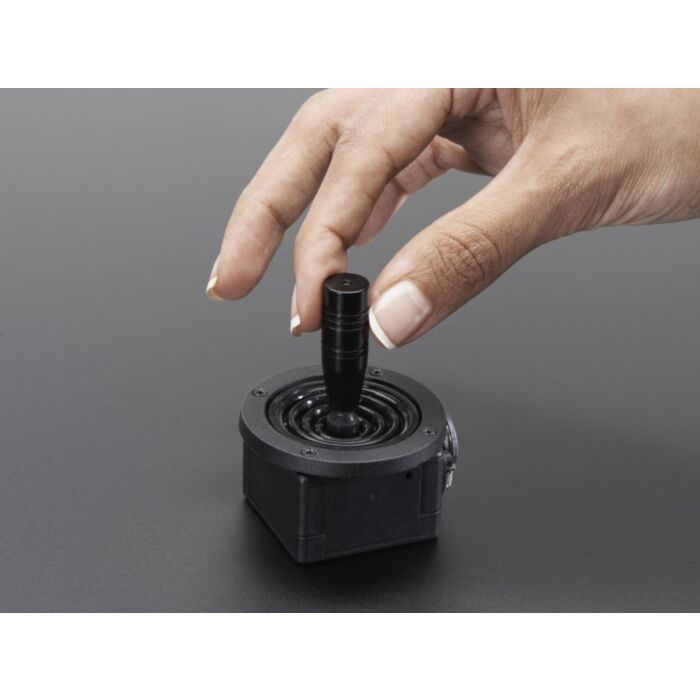

Mini Analog Joystick - 10K Potentiometers

SKU: ADA3102 Brand: Adafruit

Sometimes a simple analog control device can be the perfect tactile solution for your project, but they can be surprisingly hard to come by. Luckily Adafruit have found...

$43.70 AUD, inc GST

$39.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $38.14 (exc GST)
25+ $36.95 (exc GST)

Sometimes a simple analog control device can be the perfect tactile solution for your project, but they can be surprisingly hard to come by. Luckily Adafruit have found a low cost, quality Mini Analog Joystick to fill you directional analog input needs!

Unlike most arcade-style joysticks which come with four clicking switches, this product has two 10KO potentiometers and a spring-back system. You can get a full 50 degrees in both X and Y directions. Connect one side of each potentiometer to ground, and the other side to a higher voltage and read the analog voltage off the middle. Great for robotics and other control interfaces. This joystick is durable and has a great feel to it. You could replace the springs if you want a stronger or weaker spring-back force.

Technical Details

Resistance Value: 10 Kohm
Resistance Tolerance: ±10%
Independent Linearity: ±1%
Temperature Coefficient Resistance: ±400ppm/°C
Output Smoothness: 0.5% max
X and Y Axis range: ±25°
Mechanical Lifecycle: 500,000 cycle
Operating Temperature Range: -10~80°C

Product Dimensions: 67.4mm x 52.7mm x 52.7mm / 2.7" x 2.1" x 2.1"

Product Weight: 55.9g / 2.0oz

This product is listed in:

Components & Parts>Switches>Joysticks
