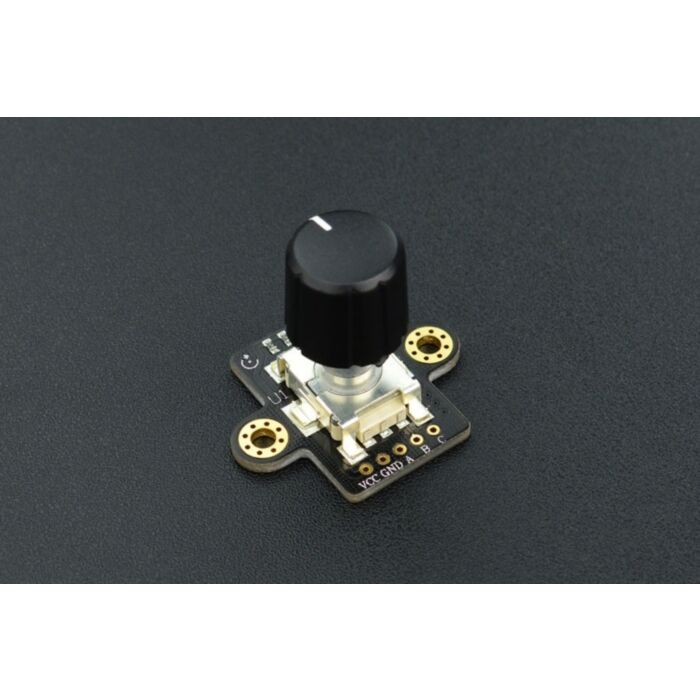

EC11 Rotary Encoder Module

Rating:
100% of 100
SKU: SEN0235 Brand: DFRobot
The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are...
$5.15 AUD, inc GST
$4.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 26th of Apr

Quantity Discounts:

  • 10-25 $4.55 (exc GST)
  • 25+ $4.45 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.

Specification

  • Operating Voltage: 3.3V ~ 5V
  • Full Rotation Angle: 360 degrees (no stop point)
  • Number of pulse: 15
  • Rotation Life: 30000 ± 200 Cycles
  • Contact Resistance: = 100mO
  • Insulation Resistance: 100MO or more
  • Oscillation: <10ms Press
  • Working Temperature: -30°C ~ +80°C
  • Module Size: 33.8 * 22.4 (mm) /1.3 * 1.1 (inches)
  • Weight: 14g
  • Documents

    Product WIKI
    More Documents

    Parts List

  • EC11 Rotary Encoder Module x1
  • XH2.54-5pin header x1
  • This product is listed in:

    Components & Parts>Rotary Encoders
