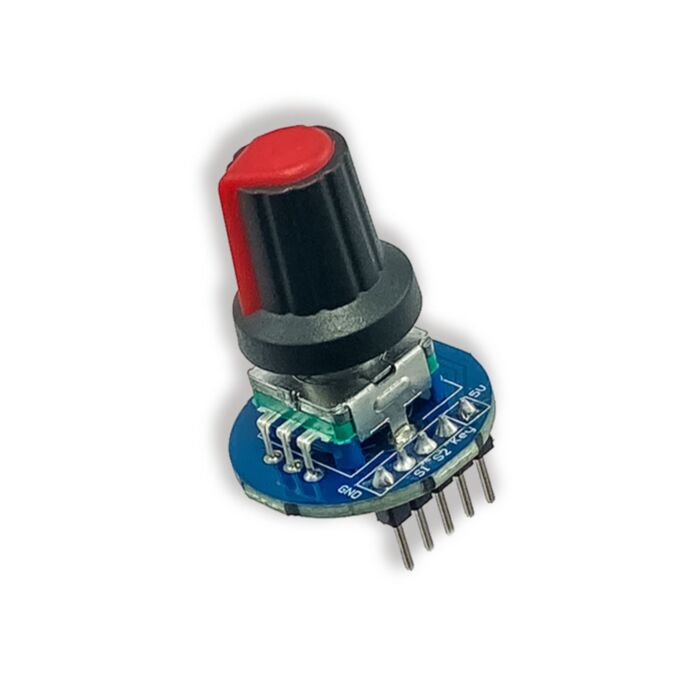

Encoder Module with button

Rating:
100% of 100
SKU: CE09436 Brand: Core Electronics Guides (1)

Round and round - measure rotational inputs with ease!

$5.60 AUD, inc GST
$5.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 27th of Feb

- +

84 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Add an easy-to-use continuous rotation input to your project, perfect for navigating through a menu, controlling volume, or connecting to a motor.

Skip adding pull-ups and debounce filters, the module includes these quality-of-life components on the underside,

Connect the module to your favourite microcontroller (ensuring you match the power supply voltage to the IO voltage).

These encoders feature the standard T18 spline and include hardware to be panel mounted like most common potentiometers. We stock a range of colourful knobs of different styles that will fit.

Check out our guide on the theory behind encoders.

Pinout

Pin function Module label
Power input 5V (Works at 3.3V)
Button output Key
Encoder A  S2
Encoder B S1
Ground GND



Specifications

  • 20 Pulses per revolution
  • PEC11R Encoder module (Datasheet)

Shipping List

  • Encoder module
  • Knob (Can ship in a range of colours)

Examples

Raspberry Pi Pico - Micropython

from machine import Pin
from utime import sleep

# Create pins for encoder lines and the onboard button

enc_btn = Pin(0, Pin.IN, Pin.PULL_UP)
enc_a = Pin(12, Pin.IN)
enc_b = Pin(13, Pin.IN)

count = 0

# Define a handler function for encoder line A
def encoder_a_IRQ(pin):
    global count
    if enc_a.value() == enc_b.value():
        count += 1
    else:
        count -= 1

# Initialise the interupt to fire on rising edges
enc_a.irq(trigger=Pin.IRQ_RISING, handler=encoder_a_IRQ)


while True:
    print(count)
    if enc_btn.value() == 0:
        print("Button pressed")
    sleep(1)
