Adafruit I2C Stemma QT Rotary Encoder Breakout with Encoder - STEMMA QT / Qwiic

SKU: ADA5880 Brand: Adafruit

Rotary encoders are soooo much fun! Twist em this way, then twist them that way. Unlike potentiometers, they go all the way around and often have little...

$16.45 AUD, inc GST

$14.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 31st of Dec

Quantity Discounts:

10-25 $14.51 (exc GST)
25+ $14.21 (exc GST)

< class="css-16">

Rotary encoders are soooo much fun! Twist em this way, then twist them that way. Unlike potentiometers, they go all the way around and often have little detents for tactile feedback. But, if you've ever tried to add encoders to your project you know that they're a real challenge to use: timers, interrupts, debouncing...

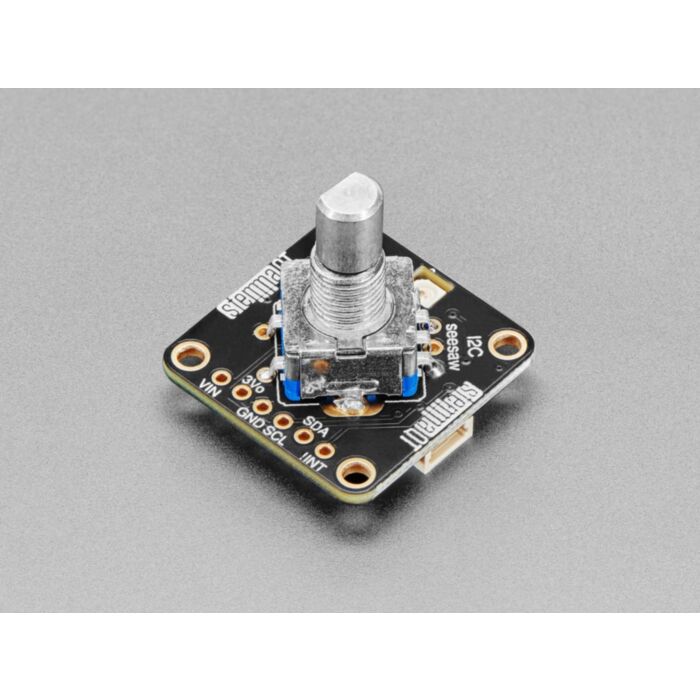

This Stemma QT breakout makes all that frustration go away - it even has a pre-soldered 'standard' PEC11-pinout rotary encoder with a push-switch. The onboard microcontroller is programmed with Adafruit's seesaw firmware and will track all pulses and pins for you and then save the incremental value for querying at any time over I2C. Plug it in with a Stemma QT cable for instant rotary goodness, with any kind of microcontroller from an Arduino UNO up to a Raspberry Pi.

This version of the board has a rotary encoder already soldered in, for instant gratification. You'll still need to get a knob if you desire one, we have lots in stock. Make sure its a D-shaft, or set-screw type not T18. If you want your own encoder, you can grab Adafruit's not-soldered-in version here.

You can use Adafruit's Arduino library to control and read data with any compatible microcontroller. We also have CircuitPython/Python code for use with computers or single-board Linux boards.

It's also easy to add this breakout to a breadboard - with six 0.1"-spaced breakout pads. Power with 3 to 5V DC and then use 3 or 5V logic I2C data. The INT pin can be configured to pulse low whenever rotation or push-buttoning is detected so you do not have to spam-read the I2C port to detect motion.

There's a NeoPixel on board, that can display any color you like. It's also controlled over I2C for additional visual feedback or keep it off if you like. On the back, there's a green power LED as well as a red INT LED that, if the interrupt is configured, will blink when the interrupt fires.

Using the three onboard address jumpers, you can connect up to 8 of these rotary encoders on a single I2C port. The first one will be at address 0x36, the last one at 0x3D when all three jumpers are soldered closed.

To keep the board nice and compact, only 1" x 1" Adafruit made the footprint for the rotary encoder at a 45-degree angle. Since it rotates around freely there's no need for it to be at a 90-degree angle to the PCB. Each order comes with one assembled and tested PCB breakout with encoder and a small piece of header.

To get you going fast, Adafruit spun up a custom-made PCB with the seesaw chip and all supporting circuitry, in the STEMMA QT form factor, making them easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the rotary encoder or to chain them with a wide range of other sensors and accessories using a compatible cable. QT Cable is not included, but the shop has a variety.

Technical Details

RoHS 2 2011 65 EU Compliant RoHS 2 2015 863 EU Compliant LearnPrimary Guide: Adafruit I2C QT Rotary Encoder A rotary encoder with STEMMA QT!</ >

This product is listed in:

Sensors>Encoders
Components & Parts>Rotary Encoders
