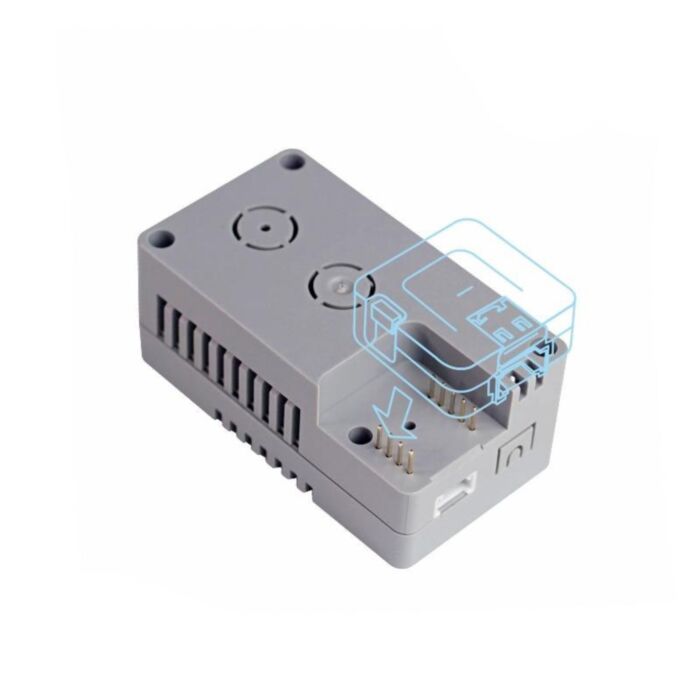

M5Stack ATOM HUB Proto Kit

Rating:

100% of 100

SKU: CE07615 Brand: M5Stack

ATOM HUB PROTO is a DIY proto board module designed for use with the ATOM series. Users can build circuits or connect peripherals according to their own needs to satisfy the functions and requirements of specific scenarios. Considering the various possibilities of user connection, ATOM HUB PROTO provides a wealth of interfaces, including VH3.96 interface, DC-5V power interface, grove interface, and all kinds of openings are reserved on the shell to facilitate user wiring.

Special Price $24.01 AUD, inc GST

Regular Price $28.25 AUD, inc GST

$21.83 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

ATOM HUB PROTO is a DIY proto board module designed for use with the ATOM series. Users can build circuits or connect peripherals according to their own needs to satisfy the functions and requirements of specific scenarios. Considering the various possibilities of user connection, ATOM HUB PROTO provides a wealth of interfaces, including VH3.96 interface, DC-5V power interface, grove interface, and all kinds of openings are reserved on the shell to facilitate user wiring?A variety of mounting holes are designed on the back of the fuselage, which not only support the traditional hanging holes and screw fixing holes, but also support the fixation of slide rail clamps.Built-in proto circuit board, main circuit space layout 45x35x20mm.With atom hub, you can make your own hardware devices at will, such as connecting batteries by yourself, or integrating micro air pump + air pressure sensor to make a blood pressure meter, or even building a positioning and tracking system with GPS + NB-IoT module.

Features

Compatible with ATOM Matrix/ATOM Lite
Compact design
Industrial applications
Multiple interface output
Multiple mounting holes
Creative DIY

Includes

1x Proto board(include GROVE port)
1x 3.96*4P Plug & Plug Base
6x 3.96*3P Plug & Plug Base
1x ATOM HUB PROTO Face shell
1x DC 5V Power outlet
4x Dust Plug
1x DIN Rail
2x Plastic
4x Magnet double-side tape
4x Rubberpad
4x Magnet
4x M2*6mm Hexagon self tapping screw
1x M2*20mm Hexagon socket cup head machine screw
2x M4*10mm Hexagon countersunk screw
1x M2 Hex Key
1x M4 Hex Key

Applications

Atom expansion board
Industrial controller node
Peripheral connection
DIY hardware

Specifications

External port: 1x VH-3.96 4P 6x VH-3.96 3P 1x DC5V Input 1x GROVE
Net weight: 93g
Gross weight: 105g
Product Size: 72*40*30mm
Package Size: 104 x 77 x 35mm
Case Material: Plastic ( PC )
