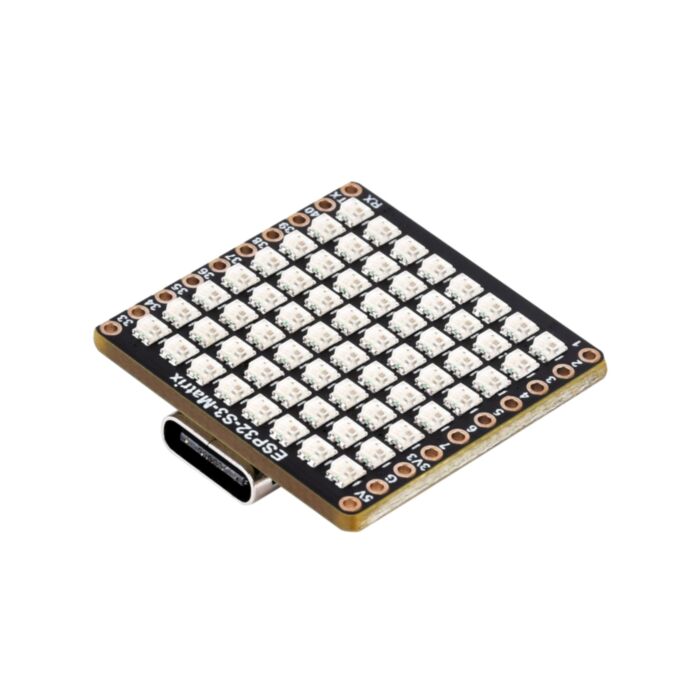

ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor

Rating:
100% of 100
SKU: WS-27119 Brand: Waveshare
ESP32-S3-Matrix Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, supports Wi-Fi and Bluetooth LE, ESP32 Development Board...
$15.10 AUD, inc GST
$13.73 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 10-25 $13.32 (exc GST)
  • 25+ $13.04 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Featuring a ESP32-S3FH4R2 chip, with a Xtensa 32-bit LX7 dual-core processor that operates at up to 240 MHz. It boasts integrated memory, including 512KB SRAM, 384KB ROM, 2MB PSRAM, and 4MB Flash, providing ample storage and processing capacity. The device supports dual-mode wireless communication with integrated 2.4GHz Wi-Fi and Bluetooth LE, offering excellent RF performance. It is powered by a Type-C connector for ease of use, with an onboard QMI8658C attitude sensor, and an 8 × 8 RGB LED matrix for vibrant lighting displays. The design incorporates a Dout pin for extending the RGB matrix and features 17 multi-function GPIO pins, enabling rich peripheral interfaces for versatile functionality. With support for multiple low-power operating states, the device allows adjustable balance between communication distance, data rate, and power consumption, catering to the power needs of diverse application scenarios

Pinout

ESP32-S3-Matrix Development Board 17 × multi-function GPIO pins

What's On Board

ESP32-S3-Matrix Development Board onboard components

  1. USB Type-C connector
  2. 8×8 RGB LED Matrix
  3. BOOT button press it when resetting to enter download mode
  4. RESET buttonME6217C33M5GLow dropout LDO, 800mA (Max)
  5. QMI8658C QST attitude sensor (3-axis accelerometer, 3-axis gyroscope)
  6. ESP32-S3 dual-core processor, up to 240MHz operating frequency
  7. Dout pin for extending RGB matrix outline

Dimensions

ESP32-S3-Matrix Development Board outline dimensions

Resources

Shipping List

  • 1 x ESP32-S3-Matrix
