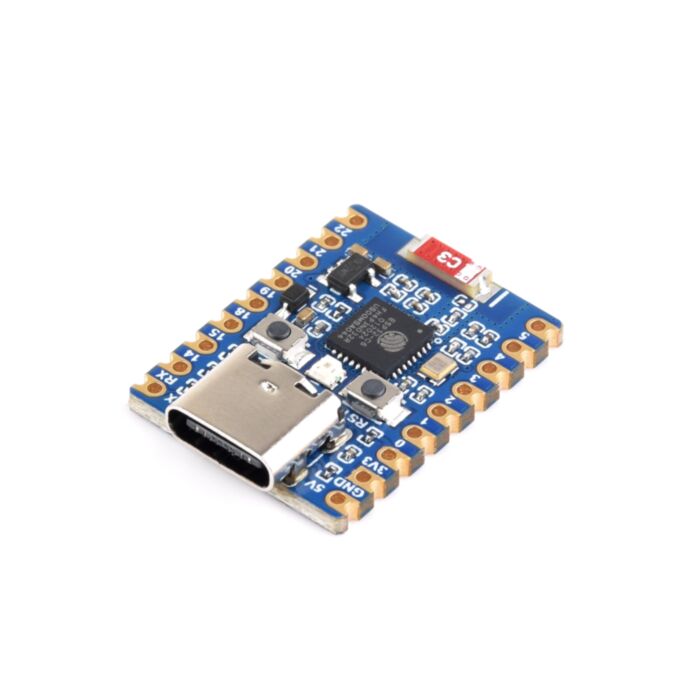

ESP32-C6 Mini Development Board

SKU: WS-27035 Brand: Waveshare
ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board...
$8.25 AUD, inc GST
$7.50 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

  • 10-25 $7.20 (exc GST)
  • 25+ $6.97 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This development board features a 32-bit RISC-V processor that runs at speeds up to 160 MHz, along with a low-power processor at 20 MHz. It includes 320KB of ROM, 512KB of high-performance SRAM, 16KB of low-power SRAM, and 4MB of Flash memory. The board supports 2.4GHz Wi-Fi and Bluetooth LE for effective wireless communication. Its design with castellated edges and an onboard ceramic antenna allows for easy soldering to carrier boards. Additionally, it offers options for flexible clock settings and independent power management to reduce energy use in various situations. The USB Type-C port and 22 GPIO pins provide versatile options for configuring pin functions.

What's On Board

ESP32-C6-Zero, onboard components

  1. ESP32-C6FH4 Built-in dual processors, main frequency is up to 160 MHz
  2. USB Type-C Portfor downloading programme and debugging
  3. ME6217C33M5G low dropout LDO, 800mA (Max)
  4. WS2812 RGB LED
  5. 2.4G ceramic antenna
  6. BOOT button Press it and then press the RESET button to enter download mode
  7. RESET button
  8. ESP32-C6FH4 pins

Pinout

ESP32-C6-Zero, pin definition

Dimensions

ESP32-C6-Zero outline dimensions

Documents

Shipping List

  • 1 x ESP32-C6-Zero
