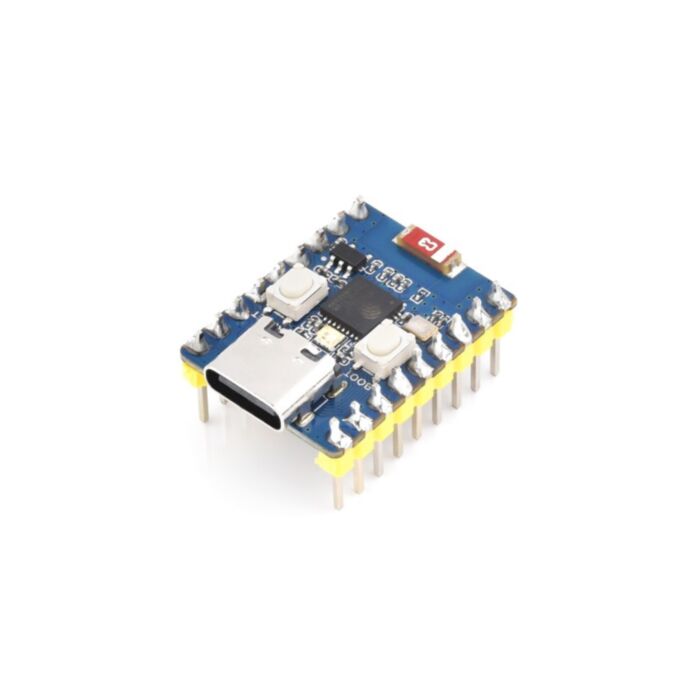

ESP32-C3 Mini Dev Board

Rating:
100% of 100
SKU: WS-25532 Brand: Waveshare
Explore the capabilities of the ESP32-C3 Mini Dev Board, a powerhouse with a RISC-V processor, Wi-Fi & BT5 connectivity, and SMD compatibility. Ideal for IoT projects, this compact board offers a 160MHz frequency, multi-function GPIOs, and low-power operation for innovative makers and professionals.
$7.55 AUD, inc GST
$6.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $6.65 (exc GST)
  • 25+ $6.52 (exc GST)
- +

34 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The ESP32-C3 Mini Dev Board is a versatile and powerful development platform designed for the modern inventor and professional. Based on the ESP32-C3FN4 Single-core Processor, this board is a testament to efficient design, offering a 160MHz running frequency and integrated 2.4GHz Wi-Fi & Bluetooth 5 capabilities.

Ideal for Internet of Things (IoT) applications, the ESP32-C3 Mini Dev Board is not only SMD Compatible but also features a castellated module that allows for seamless integration into your projects. With its multi-function GPIO pins, you have the flexibility to create and innovate without limitations.

Specifications

  • Equipped with a low-power RISC-V 32-bit single-core processor, achieving up to 160MHz main frequency.
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) for comprehensive wireless connectivity.
  • Boasts 400KB of SRAM, 384KB ROM, and 4MB of onboard Flash memory for robust data storage and retrieval.
  • The castellated module design and onboard ceramic antenna enable direct soldering to carrier boards, enhancing design flexibility.
  • Features include USB serial port full-speed controller, 15 × GPIO pins, 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, and 2 × ADC for a wide range of functionalities.

What's On Board

  1. USB Type-C Port
  2. BOOT button
    Press it and then press the RESET button to enter download mode
  3. RESET button
  4. WS2812 RGB LED
  5. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  6. ESP32-C3FN4 single-core processor
    up to 160MHz operating frequency
  7. 2.4G ceramic antenna

Pinout

Dimensions

Resources
