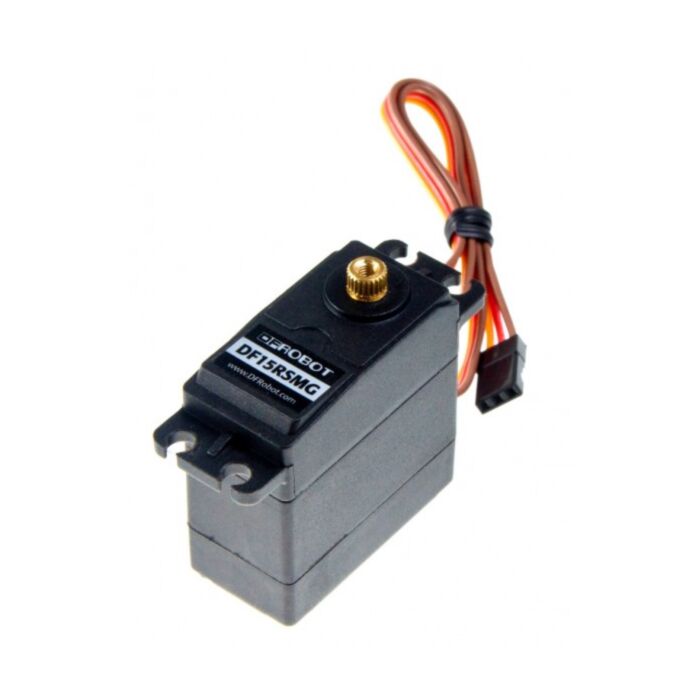

DF15RSMG 360 Degree Motor (20kg)

Rating:
100% of 100
SKU: SER0035 Brand: DFRobot
This is a most powerful standard servo sized motor from DFRobot so far. The DF15RSMG equips with two pairs of the servo shells. One is a stardard shell with four M4 mounting holes.
$29.65 AUD, inc GST
$26.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 10-25 $25.87 (exc GST)
  • 25+ $25.06 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is a most powerful standard servo sized motor from DFRobot so far. The DF15RSMG  equips with two pairs of the servo shells. One is a stardard shell with four M4 mounting holes. And the other one includes a shell with double bearing which is specially designed for the application of the robot arm or the joints.The shells of this kit are thickened to make it stable enough for motion system.

The torque of this motor is about 19kg.cm at 7.4v power supply.Using the Arduino servo library, you could drive this servo motor easily.To reduce the consumption of your microcontroller, this servo has a lock function for the pulse detection. So driving it to a target position just requires one PPM controlling signal.



Mechanical specification

  • Rotation angle range: 360°
  • No-load speed:60°/0.16s @7.4v
  • Stall torque:19.3kg.cm(7.4v)
  • Dynamic torque:15.1kg.cm(7.4v)
  • Gear:steel,copper mixed gear
  • Assembly method:fastening with double layer 4 screws
  • Equip 2 pairs of shells,2 metal servo horns and 2 servo support
  • Size: 40x40x20 (mm)


Electrical specification

  • Working Voltage: 5-7.4v
  • Stall current:3A(@8.5V - Limit test)
  • PPM Voltage:3V-5V
  • PPM Resolution:2us
  • PWM driver frequency:4KHZ
  • Range of PPM positive pulse width:400us-2550us
  • Minimum value of PPM negative pulse width:400us


Cable definition

  • Brown - GND
  • Red  - VCC
  • Orange  - Signal(PPM input wire)


Shipping List

  • DF15RSMG Servo       1 unit
  • Servo Shell          2 unit
  • Fitting package      1 unit
