DF Metal Geared 15Kg Standard Servo 270° (DSS-M15S)

Rating:
100% of 100
SKU: SER0038 Brand: DFRobot Guides (2)
DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.
$26.95 AUD, inc GST
$24.50 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 23 and Apr 29

Quantity Discounts:

  • 10-25 $23.76 (exc GST)
  • 25+ $23.27 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.

Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.

In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.

Specification

  • Voltage: 4.8-7.2 Volts
  • Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)
  • Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)
  • Free Run Current: 80mA/100mA (6.0V/7.0V)
  • Stall Current: 1.8A/2A (6.0V/7.0V)
  • Standby Current: 4mA/5mA (6.0V/7.0V)
  • Rotation: 270°
  • Wheel Gear: Metal
  • Gear Ratio: 310:1
  • Dimension: 54.5*20*47.5mm
  • Signal: RC PWM
  • Pulse Range: 500-2500 us
  • Frequency: 50-330Hz(Arduion-compatible)

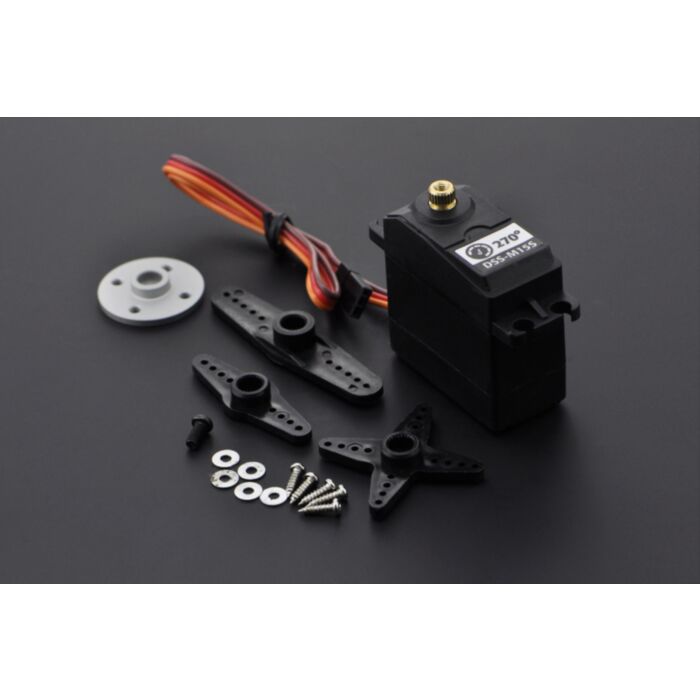

Parts List

  • DSS-M15S Servo x1
  • Metal round servo horn x1
  • X servo horn x1
  • long straight servo horn x1
  • Straight servo horn x1
  • M2*8 self tapping screw x5
  • M2 screw washer x5
  • M3*6 screw x1
