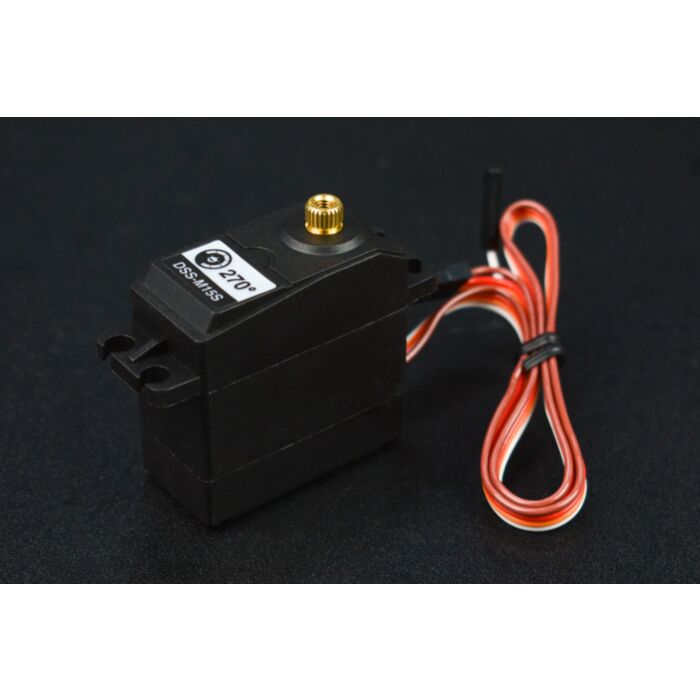

DSS-M15S 270° 15KG DF Metal Servo with Analog Feedback

Rating:
80% of 100
SKU: SER0044 Brand: DFRobot
DSS-M15S servos have been well received by customers in these years. It has extremely wide angle range control, huge load capacity and excellent quality. This DSS-M15S...
$29.95 AUD, inc GST
$27.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

  • 10-25 $26.41 (exc GST)
  • 25+ $25.86 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

DSS-M15S servos have been well received by customers in these years. It has extremely wide angle range control, huge load capacity and excellent quality. This DSS-M15S with analog feedback has broken its internal potentiometer signal. This is an analog signal with 0~3.3V feedback. You can connect it to MCU to realize close-loop feedback control. DSS-M15S 270° Metal servo with feedback is compatible with Arduino Servo library. You can drive it with Arduino Board and read the angle value from analog side. Angle-Analog Value Dimension

Specification

Electronic Specifications

  • Operating voltage: 4.8-7.2V
  • 6V test environment
  • Operating speed (no load): 0.18 sec/60 degrees
  • Resting current: 80mA
  • Locking torque: 13.5KG*cm
  • Stall current: 1.8A
  • Standby current: 4mA
  • 7V test environment
  • Operating speed (no load): 0.16sec/60 degrees
  • Resting current: 100mA
  • Locking torque: 15KG*cm
  • Stall current: 2A
  • Standby current: 5mA
  • Mechanical Specifications
  • Gear material: metal gear
  • Operating angle: 270 degrees
  • Wiring gauge: 28PVC
  • Data line length: 320mm
  • Gear bracket spline: 25T/5.80
  • Gear ratio: 310:1
  • Size: 54.5*20*47.5mm
  • Control Specifications
  • Feedback signal: 0-3.3V
  • Control signal: RC PWM
  • Pulse range: 500-2500 us
  • Median signal value: 1500us
  • Clockwise rotation: <1500us
  • Control frequency: 50-330Hz (Arduion compatible)
  • Documents

    Product wiki

    Parts List

  • DSS-M15S 270° servo with analog feedback x1
  • Crossed horn x1
  • Long straight horn x1
  • Short straight horn x1
  • M2*8 self-tapping screws and gasket x5
  • M3*6 screw x1
  • This product is listed in:

    Components & Parts>Motors>Servos>Standard
