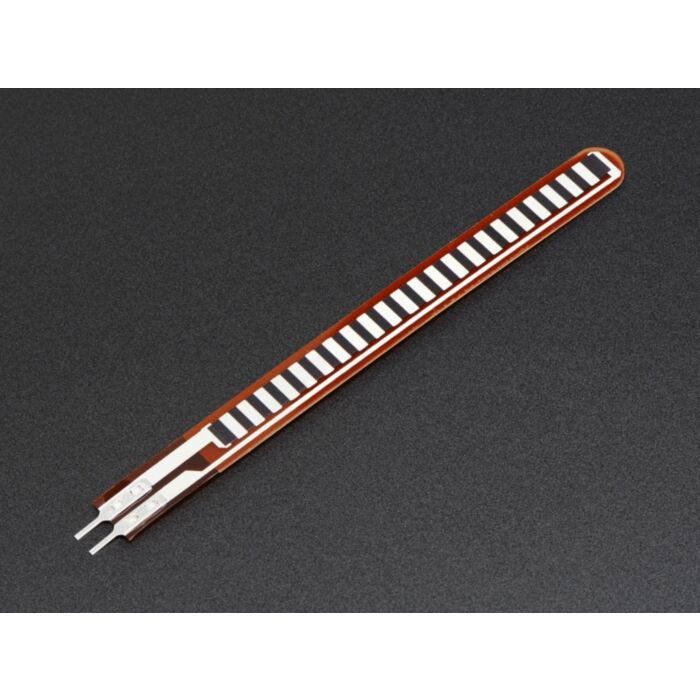

Short Flex Sensor

SKU: ADA1070

$15.50 AUD, inc GST
$14.09 AUD, exc GST

More Views

Short Flex Sensor
15.5 AUD

SKU: ADA1070

$15.50 AUD, inc GST
$14.09 AUD, exc GST
In stock, with a short lead time. 125 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 26th of Dec with Express Post within Australia.
Shipping Offer

This sensor can detect flexing or bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.

These sensors are easy to use, they are basically resistors that change value based on how much their flexed. If they're unflexed, the resistance is about ~25KΩ. When flexed all the way the resistance rises to ~100KΩ. They're pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a micro-controller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.

The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!

Technical Details

Dimensions:

  • Length: 77.57mm/3.054in
  • Width: 6.41mm/0.2525in
  • Thickness: 0.48mm/0.019in
  • Weight: 0.27g/0.0095oz

Datasheet from SpectraSymbol

Documentation and Resources:
