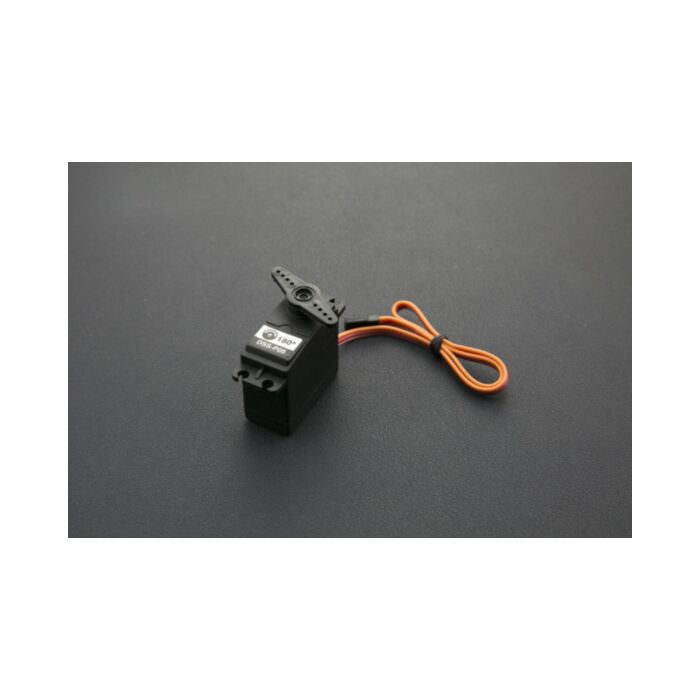

DSS-P05 Standard Servo (5.1kg)

Rating:
90% of 100
SKU: SER0020 Brand: DFRobot
DF05BB high torque servo, suitable for the production head, arm, biped robot, etc.
$20.20 AUD, inc GST
$18.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 10-25 $17.81 (exc GST)
  • 25+ $17.45 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

DSS-P05 Standard Servo high torque servo, suitable for the production head, arm, biped robot, etc.

Note: The DF05BB servo that previously had this part number has been replaced by the DSS-P05 standard servo which has a greater rotation range.

Specifications

  • Voltage: +4.8-6.0 V
  • Running current (at no load): 20mA@ 4.8V  25mA@ 6V
  • Stall current (at locked): 300mA@ 4.8V  350mA@ 6V
  • Rotation Degree: 180 Degree
  • Torque Size: 3.5kg · cm (4.8V); 4.5kg · cm (6.0V)
  • No load speed: 0.17 seconds / 60 degrees (4.8V); 0.12 sec / 60 degrees (6.0V)
  • Operating temperature: 0 ℃ ~ 60 ℃
  • Dead Set: 20us
  • Size: 40.2 X 20.2 X 43.2mm
  • Weight: 38±1g

Shipping List

  • 1x DSS-P05 Standard Servo (5.1kg)
