Gravity: Analog AC Current Sensor

SKU: SEN0211

$34.59 AUD, inc GST
$31.45 AUD, exc GST

More Views

Gravity: Analog AC Current Sensor
34.59 AUD

SKU: SEN0211

$34.59 AUD, inc GST
$31.45 AUD, exc GST
In stock, with a short lead time. 40 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.

Introduction

When you want to measure AC current it is impractical and hazardous to cut in to your live wiring. The analog AC current sensor developed by DFRobot is a good solution to this problem. Using induction you can measure AC current without intrusive methods. Place your AC wire inside the unit, connect the unit to the sensor board using the 3.5mm jack connector and connect the sensor board to an analog input on your microcontroller. Use this sensor to measure AC motors, lighting equipment, air compressors or any other devices that use AC current.

FEATURES

  • Supports Gravity 3-Pin interface
  • Analog output

Specification

  • Module
    • Operating Voltage: 3.3V - 5.5V
    • Analog Output Voltage: 0.2V - 2.8V (DC)
    • AC Signal Input Range: 0 - 1V (AC)
    • Relative Error: + 3%
    • Interface: PH2.0-3P
    • Dimensions: 32 * 27 mm/1.26 * 1.06 inches
  • AC Current Sensor Probe
    • AC Measurement Range: 0 - 20A
    • AC Signal Output: 0 - 1V AC map onto 0-20 A
    • Non-linearity: ±3% (10% ~ 120% of the rated input current)
    • lead length: 1.5 meters
    • Opening and closing times: >= 1000 times
    • Working temperature: -25℃ to +70℃
    • Dimensions: 13 * 13mm/ 0.51 * 0.51 inches

Parts List

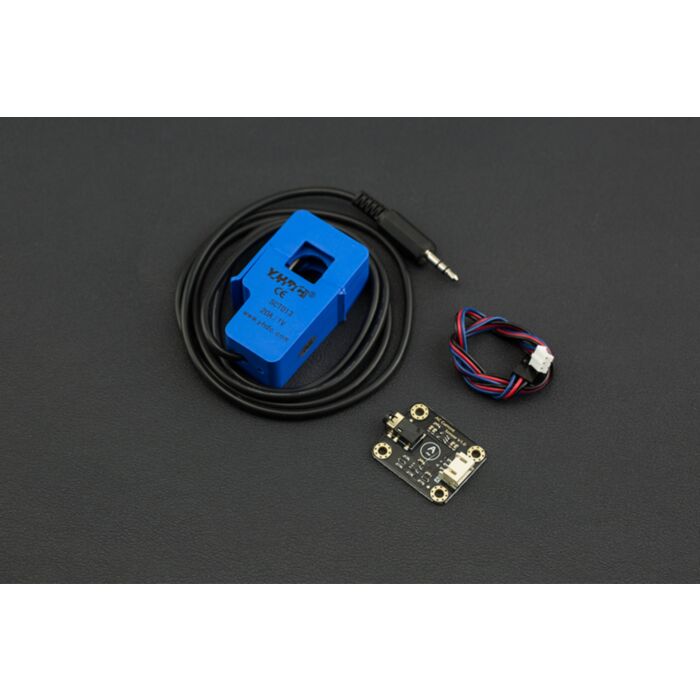

  • Analog AC Current Sensor x1
  • Open type AC transformer probe x1
  • Analog Sensor Cable x1
