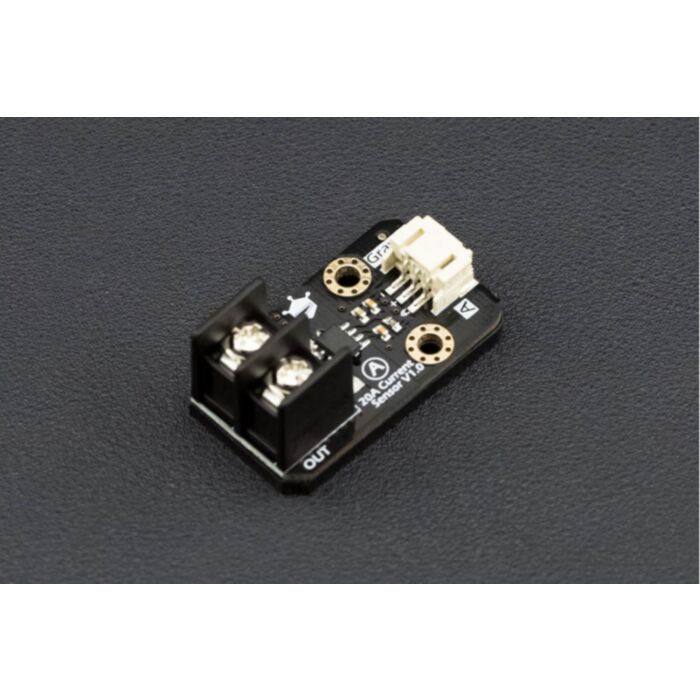

Gravity: Analog 20A Current Sensor

Rating:

100% of 100

SKU: SEN0214 Brand: DFRobot

This Gravity Analog 20A current sensor is based on the Hall current sensing principle. It can be used for AC or DC current measurement, has a wide voltage range...

$15.55 AUD, inc GST

$14.14 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 14 and Feb 18

Quantity Discounts:

10-25 $13.71 (exc GST)
25+ $13.43 (exc GST)

Introduction

This Gravity Analog 20A current sensor is based on the Hall current sensing principle. It can be used for AC or DC current measurement, has a wide voltage range, a small footprint, requires no soldering and has a high level of precision. We have added high-voltage isolation in the circuit design for safety reasons and a non-conductive acrylic plate has been attached to the bottom of the PCB to prevent accidents such as short circuits, electric shocks and any other potential danger. This component is the newest member of our Gravity series. All Gravity components include a standard 3-pin interface to make it simple to use and easy to connect to all Arduino compatible boards. It is ideal for any automation control applications.

FEATURES

Gravity 3 pin interface

Analog voltage output

High voltage isolation

Measures DC and AC current

Specification

Power Supply: +5.0V

Current Range: 0 ~ ±20A DC,0 ~ 17A (RMS) AC

Measurement Endure: 220V AC, 311V DC

Relative Error: ±3%

Dimension: 39 * 22 * 17mm/ 1.53 * 0.87 * 0.67 inches

Interface: Gravity PH2.0-3P

Weight: 18g

Documents

Product Wiki
