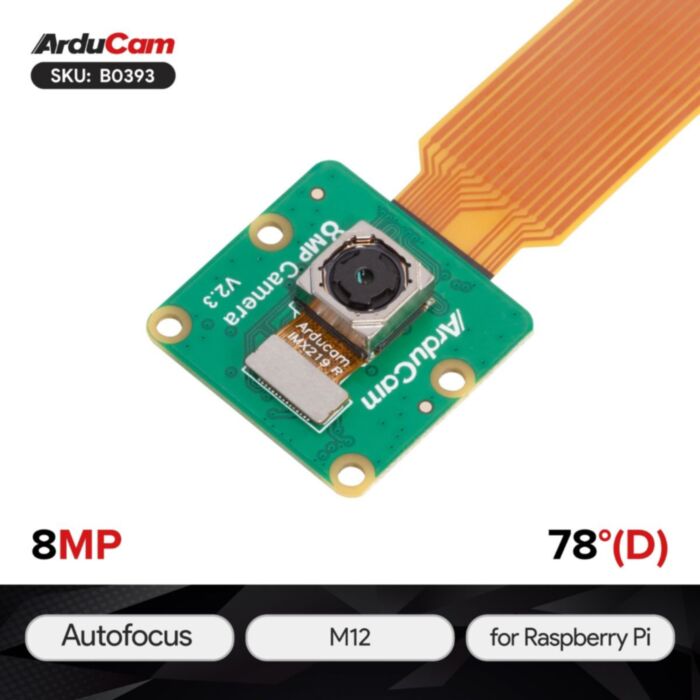

Arducam 8MP IMX219 Auto Focus Camera Module

SKU: AC-B0393 Brand: Core Electronics

place

$34.45 AUD, inc GST

$31.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $30.38 (exc GST)
25+ $29.75 (exc GST)

Overview

The official Raspberry Pi camera module v2 has fixed-focus lenses, which are either glued or need manual adjustment. However, Arducam thinks that your focus matters and has released this motorized focus camera for Raspberry Pi. This camera module is designed for you to control the focus on a camera for Raspberry Pi via software, so you can see closer and see where you want to see.

Applications

Unmanned Aerial Vehicles (UAVs)
Building Drones
Autonomous Robotic Systems
Mobile Medical Imaging
Intelligent Video Analytics (IVA)

Features

Raspberry Pi Camera: Designed for Raspberry Pi, this 8MP HD camera module has a Sony IMX219 8MP pixel sensor with an autofocus lens. Focal Length: 2.8 mm; Angle of View: 77.6 degrees (diagonal).
AutoFocus Lens: Software-controllable motorized focus lenses with manual and autofocus Python scripts supported by OpenCV, allowing remote control of focus without lens adjustment tools. With a simple script configuration, you can use Up/Down on the keyboard for precise manual focus control.
Wide Compatibility: The camera is not only compatible with all models of Raspberry Pi 1, 2, 3, and 4, but also with Raspberry Pi Zero and Zero 2W, which can be easily used with a simple configuration.
8MP More than HD: Supports 3280 × 2464 pixel still images and still captures.
Easy and Convenient: It is easy for beginners, and it also offers more to explore for advanced gamers.

Camera Specs

Image Sensor	IMX219
Still Resolution	8 Megapixels
Video Modes	1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution	3280 × 2464 pixels
Sensor image area	3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size	1.12 µm x 1.12 µm
Optical Size	1/4"
IR Sensitivity	Integral IR-cut Filter, visible light only
Supported Platform	Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Lens

FOCUS TYPE	PROGRAMMABLE/AUTO FOCUS
Focal Length	2.8mm
F.NO	F2.2
Field of View(FOV)	65°(H)×51°(V)×77.6°(D)
Focus Distance	80mm~infinity

Electrical & Mechanical

Camera Board Size	25 x 24mm
Peaking Current	300mA

Package Includes

1 x 8MP IMX219 Auto Focus Camera Module with Motorized Lens
1× 15cm 15-22pin FPC Cable
1× 15cm 22-22pin FFC Cable

Note

The package does not include any Raspberry Pi motherboard.
The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
The lenses of all camera modules are not interchangeable.

NOTE ON SUPPORTED RASPBERRY PI BOARDS AND OS
Platform	Bookworm(rpicam)	Bullseye(libcamera)	Buster(raspistill)
Raspberry Pi 5	√
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W	√	√
Raspberry Pi CM3 / CM3+ / CM4 (extra carrier board required)	√	√	√

Documentation

8MP IMX219 Motorized Focus Camera Used on Raspberry Pi
