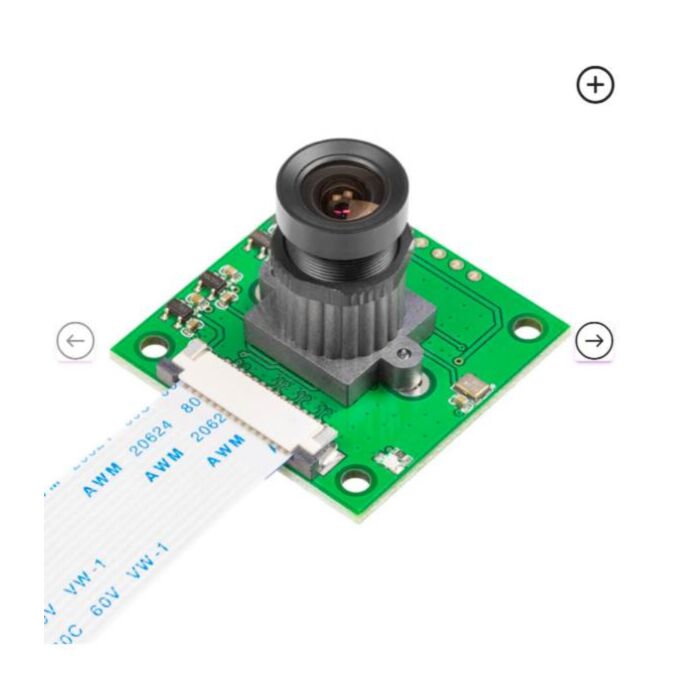

Arducam 5MP OV5647 Camera Module with M12 Lens

SKU: AC-B0031 Brand: Arducam

This OV5647 camera module with autofocus capabilities and an extremely large adjustable focal-distance range is perfect for short to mid-range photography and image recognition projects.

$28.55 AUD, inc GST
$25.95 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 01 and Oct 05

Quantity Discounts:

  • 10+ $24.92 (exc GST)
  • 25+ $24.14 (exc GST)

0 from local stock, supplier stock; your order will dispatch . And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This camera module is a custom add-on for Raspberry Pi. The camera uses the dedicated CSI interface on the Pi (both on the Pi 5). The CSI bus is capable of extremely high data rates. The board itself is tiny, at around 36mm squared. The highlight of the module is that the Lens is replaceable compared to the official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.



The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images and also supports 1080p30, 720p60, and 640x480p 60/90 video.

Specifications

  • Lens holder: M12 × 0.5
  • 5 MP Resolution
  • Integrated IR filter
  • Frame rate at max resolution 30 fps
  • Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi
  • Camera Lens model HX-27227
  • OmniVision OV5647 sensor in a fixed-focus module with replaceable lens

Specifications

SensorOmnivision OV5647 sensor
Optical Size1/4” (OV5647)
Resolution5MP 2592×1944
Max Frame Rates1080p 30 fps, 720p 60fps, 480p 90fps
Focal Length4mm
Field of View(FOV)56°(H)
Focus TypeManual Focus
Lens TypeM12 Lens
Dimensions36 × 36 mm
Peak Current300mA

Package Including

  • 1 × 5 Megapixels OV5647 Sensor Camera Module
  • 1 × 15cm 15-pin FPC cable

Notes

  • Raspberry Pi not included
  • This board is slightly larger (36cm) than the official Raspberry Pi Camera V2, so it does not fit some cases for the Raspberry Pi cameras
  • It works with Pi Zero, but you will need an adapter cable
