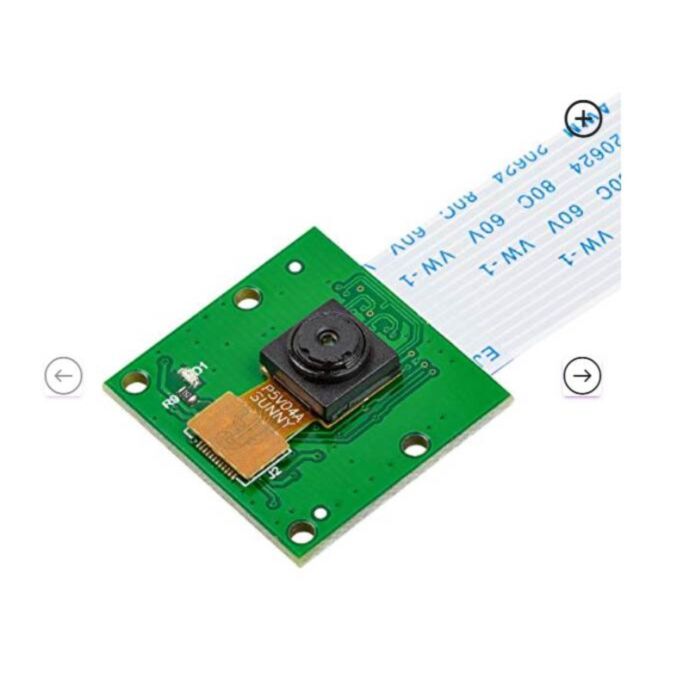

This is a mini 5MP Arducam camera module compatible with the Raspberry Pi, model number OV5647
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Feb
Quantity Discounts:
To meet the increasing need for Raspberry-Pi-compatible camera modules, the Arducam team now released another add-on mini camera module for Raspberry Pi. The board itself is tiny, at around 25mm × 24mm, which makes it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi with a short ribbon cable. The camera is connected to the BCM2835 | BCM2836 processor on the Pi via the CSI bus, a high bandwidth link that carries pixel data from the camera back to the processor. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 × 1944 pixel static images and also supports 1080p30, 720p60, and 640x480p 60/90fps video.
Sensor | Omnivision OV5647 sensor |
Sensor size | 1/4” (OV5647) |
Resolution | 5MP 2592×1944 |
Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
Field of View (FOV) | 54°(H), 41°(V) |
Focus Type | Fixed Focus |
Focus Length | 3.60mm |
Focus Distance | 1 m to infinity |
Full-frame SLR lens equivalent | 35 mm |
Peak Current | 300mA |
Dimensions | 25×24 mm |
Troubleshooting Arducam OV5647 Cameras for Raspbrry Pi
