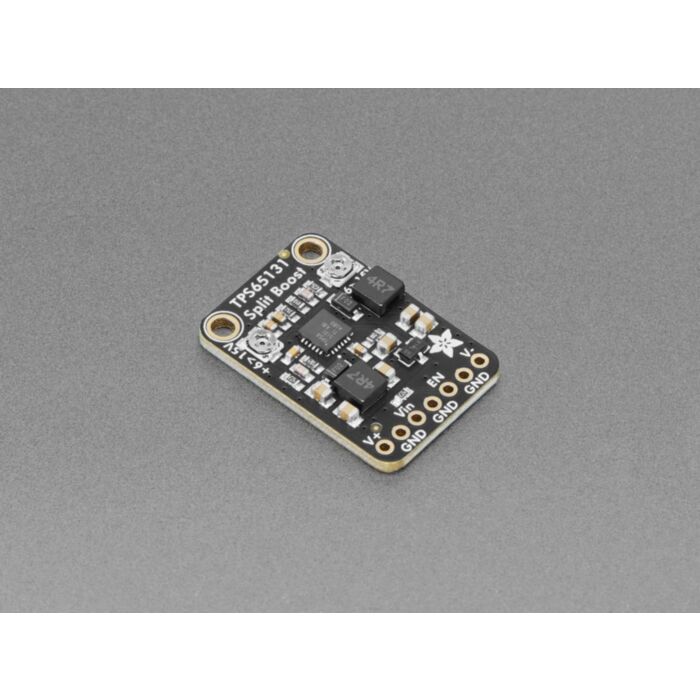

Adafruit TPS65131 Split Power Supply Boost Converter - +6~15 / -6V~-15V

SKU: ADA6280 Brand: Adafruit
Need those tricky split-rail voltages for your vintage electronics? The Adafruit TPS65131 Split Rail Boost Converter generates both positive and negative...
Special Price $10.31 AUD, inc GST
Regular Price $13.73 AUD, inc GST
$9.37 AUD, exc GST
Special pricing ends 23 June 2025
* this special may end earlier than shown

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Need those tricky split-rail voltages for your vintage electronics? The Adafruit TPS65131 Split Rail Boost Converter generates both positive and negative voltage rails from a single 3-5V input. This makes it great for mimicking or replacing a transformer-based power supply or something that needs negative bias. Adafruit kept the design compact, and it even has adjustable output pots, so you can tune the voltages from about +6~+15VDC and -6~15VDC. Perfect for use with audio or retro projects now that transformer supplies are hard to get, or if you want to have something that could run on battery or USB.

Features

  • The TPS65131 can generate positive and negative voltages simultaneously
  • Adjustable voltage ranges: +6V to +15V and -6V to -15V, these are somewhat approximate because the trimmer pot can vary, you may find +/-0.5V variance on the bookend values
  • Input voltage: 3 to 5.5V
  • Output current: 150mA from each rail (assuming +12/-12V from 4.5V input). So not good for a motor, best for biasing or powering analog/digital electronics
  • Compact breadboard-friendly design with mounting holes and two trimmer pots

Adafruit initially designed this to generate a -12V bias voltage on an Apple ][ disk drive, but you could definitely use it for synthesizers/modulars, TTL logic or op-amps that want a wide power supply, biasing LCDs or OLEDs, as well as other uncommon voltages. The trimmers let you tweak the outputs so you could get +6V and -12V or +12 and -8V.

Technical Details

Product Dimensions: 28.0mm x 19.0mm x 3.5mm / 1.1" x 0.7" x 0.1"

Product Weight: 2.5g / 0.1oz

RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
