Adafruit NeoPot - Clear Shaft Potentiometer with RGB NeoPixel

SKU: ADA6387 Brand: Adafruit
.....
Special Price $7.70 AUD, inc GST
Regular Price $10.00 AUD, inc GST
$7.00 AUD, exc GST
Special pricing ends 14 December 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Oct 17 and Oct 21

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

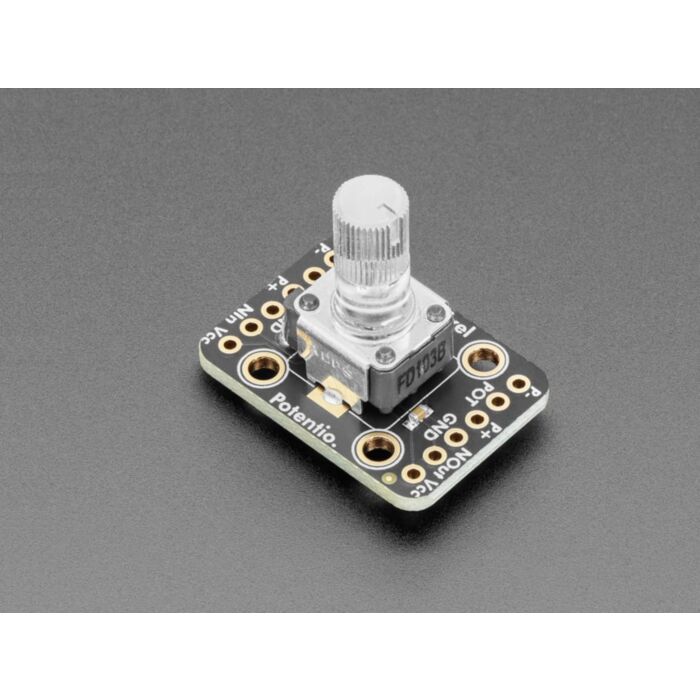

While researching potentiometers for a future design Adafruit bumped into the nifty RK09K1130D62 clear shaft linear potentiometer. This 10K linear pot is just like the popular Alps RK09 series but with a clear shaft that extends down to about 1mm above the underlying PCB. So, unsurprisingly, Adafruit paired this crystal trimmer with a skinny NeoPixel to make the Adafruit NeoPot, an easy-to-use glowing potentiometer.

Each board comes assembled with a NeoPixel soldered beneath the potentiometer so it lights up the shaft for full RGB color selection. The potentiometer has all three pins exposed: P-, Pot (wiper), and P+, and is rated for up to 20V. Likewise, Adafruit have NeoPixel power and data: Vcc, N-In, Gnd and on the opposite side, N-out. You can power the pixel from 3V or 5V, ideally give it the same power as the logic level you're sending in.

Since most folks use the same power for NeoPixels as for a potentiometer/analog input, you can solder the two jumpers on the bottom to tie P- to Ground and P+ to Vcc, saving two wires.

The PCB has two strips of header for mechanical stability, and four mounting holes if you need to fix it against a front plate. Comes with extra header which will need to be soldered on to plug into a breadboard. Note you need a microcontroller/microcomputer that can drive NeoPixels!

Technical Details

Product Dimensions: 25.3mm x 21.6mm x 17.7mm / 1.0" x 0.9" x 0.7"

Product Weight: 3.2g / 0.1oz

RoHS 2 2011 65 EU Compliant

RoHS 2 2015 863 EU Compliant
