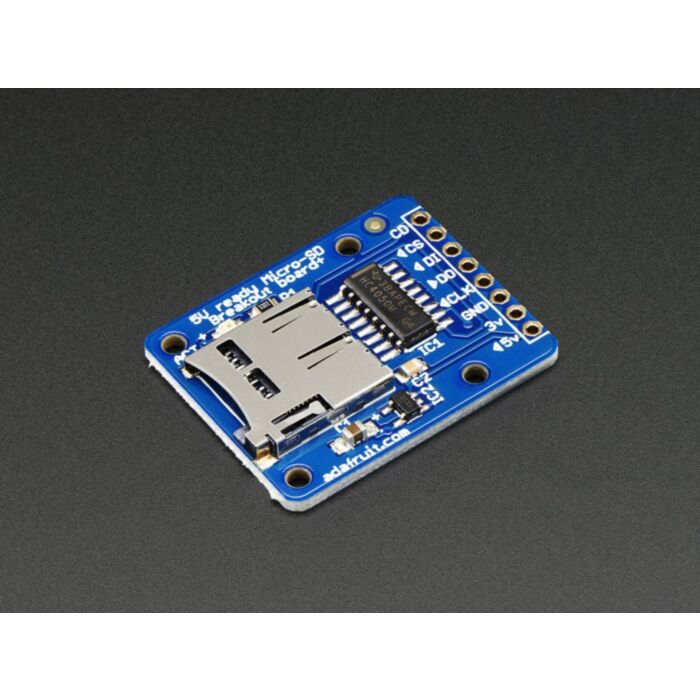

MicroSD card breakout board+

Rating:
100% of 100
SKU: ADA254 Brand: Adafruit
Not just a simple breakout board, this microSD adapter goes the extra mile - designed for ease of use. Onboard 5v->3v regulator provides 150mA for power-hungry cards...
$16.10 AUD, inc GST
$14.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $14.05 (exc GST)
  • 25+ $13.61 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Not just a simple breakout board, this microSD adapter goes the extra mile - designed for ease of use.

  • Onboard 5v->3v regulator provides 150mA for power-hungry cards
  • 3v level shifting means you can use this with ease on either 3v or 5v systems
  • Uses a proper level shifting chip, not resistors: less problems, and faster read/write access
  • Use 3 or 4 digital pins to read and write 2Gb+ of storage!
  • Activity LED lights up when the SD card is being read or written
  • Four #2 mounting holes
  • Push-push socket with card slightly over the edge of the PCB so its easy to insert and remove
  • Comes with 0.1" header (unattached) so you can get it on a breadboard or use wires - your choice
  • Tested and assembled here at the Adafruit factory
  • Works great with Arduino, with tons of example code and wiring diagrams

To use with an Arduino, connect GND to ground, 5V to 5V, CLK to pin 13, DO to pin 12, DI to pin 11, and CS to pin 10. Then you can use the Arduino IDE's SD library which supports FAT and FAT32 SD cards. For details on getting started, check out Adafruit's detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino

Technical Details

Datasheet, EagleCAD, and fritzing available in the product tutorial

Dimensions (without 0.1" header):

  • Length: 31.85mm/1.25in
  • Width: 25.4mm/1.00in
  • Height: 3.75mm/0.15in
  • Weight: 3.43g/0.12oz

This product is listed in:

Breakouts & Modules>Data Storage
