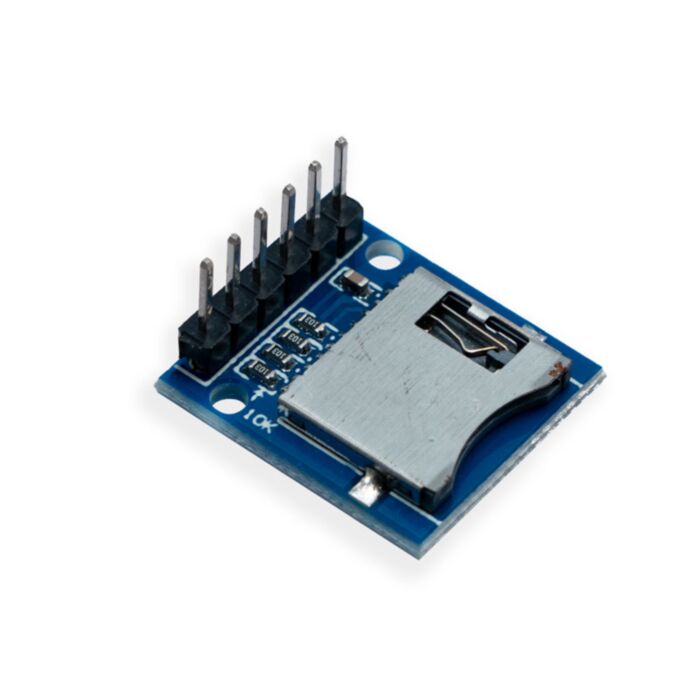

microSD Adapter

SKU: CE09444 Brand: Core Electronics

If you need to load or store large amounts of data, look no further than this 3.3V SPI microSD card module.

$1.15 AUD, inc GST

$1.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

5-15 $1.03 (exc GST)
15+ $0.99 (exc GST)

Recommended Essentials:

Official Raspberry Pi 32GB A2-Class micro SD card

$15.90

MicroSD Memory Card - 16GB Class 10

$15.15

If you need to load or store large amounts of data, look no further than this 3.3V SPI microSD card module.

The module breaks out each onboard connection to convenient 0.1" headers, add a microSD card, and some jumper wires to connect everything, and get logging!

Perfect for the Raspberry Pi Pico and ESP32 development boards.

Specifications

Operating Voltage (Power and logic): 3.3V (Depends on your microSD card)
Uses SPI interface

Pinout

From top to bottom, with the arrow on the silkscreen facing upwards:

VCC, 3v3
CS
MOSI
CLK
MISO
GND

Examples

Raspberry Pi Pico - Micropython

Library: sdcard

from machine import SPI, Pin
import sdcard, uos

spi = SPI(1,sck=Pin(14), mosi=Pin(15), miso=Pin(12))
cs = Pin(13)
sd = sdcard.SDCard(spi, cs)

uos.mount(sd, '/sd')
print(uos.listdir('/sd'))

# Setup sensors here
adc = ADC(0)
with open('/sd/adcData.txt', "w") as f:
    while True:
        x = adc.read_u16() # Replace this line with a sensor reading of your choosing
        t = time.ticks_ms()/1000
        f.write(str(t)) # Write time sample was taken in seconds
        f.write(' ') # A space
        f.write(str(x)) # Write sample data
        f.write('\n') # A new line
        f.flush() # Force writing of buffered data to the SD card
        print(t, x)
        time.sleep_ms(500)
