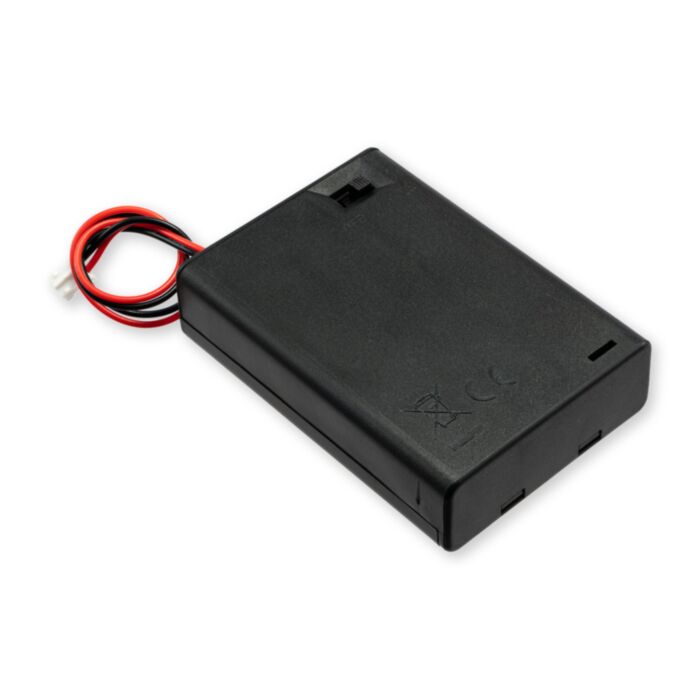

3x AA Battery box (JST-PH, Switch)

Rating:

100% of 100

1 Review

SKU: CE09454 Brand: Core Electronics

Conveniently power your projects with this sleek, quality battery box!

$1.80 AUD, inc GST

$1.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

4-12 $1.37 (exc GST)
12+ $1.19 (exc GST)

Power up your projects with style!

Pop 3 AA's in the battery box and power up your JST-PH projects, with Alkaline AA Batteries the voltage will be somewhere between 3.3 and 4.8 and Volts depending on the charge, and if you are using NiMH batteries somewhere between 4.2 and 2.7 volts. Both are similar to LiPo batteries but far less prone to dangerous failures.

Since both aren't LiPo's make sure you do not plug them into any LiPo chargers!

Add one to your next robot or portable project - the on-off switch is recessed and harder to accidentally switch on and off, perfect for projects with lots of moving parts!

Note: Does not include batteries

Not recommended for use with the micro:bit, Alkaline batteries will exceed the maximum allowed battery voltage

Specifications

Holds 3 AA Batteries in series
JST-PH Connector
On-Off Switch
Approximately 150mm wire length
Dimensions: 50mm x 70mm x 20mm

This product is listed in:

Power & Batteries>Battery Holders
