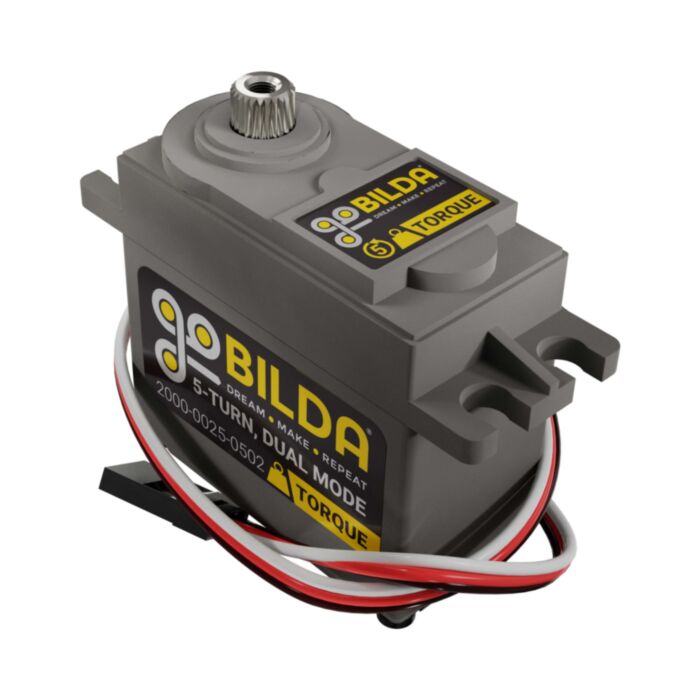

2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)

SKU: GB-2000-0025-0502 Brand: goBilda

Like the other 2000 Series goBILDA Servos, the 2000-0025-0502 boasts two different modes. In the default mode, the servo is able to rotate.....

$81.95 AUD, inc GST

$74.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

6-12 $71.52 (exc GST)
12+ $69.28 (exc GST)

Like the other 2000 Series goBILDA Servos, the 2000-0025-0502 boasts two different modes. In the default mode, the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Downloads

STEP File

Specs

Weight	64g
Gear Ratio	300:1
Output Shaft Style	25 Tooth Spline
Voltage Range	4.8V ~ 7.4V
No-Load Speed (4.8V)	0.25sec/60° (40RPM)
No-Load Speed (6.0V)	0.20sec/60° (50RPM)
No-Load Speed (7.4V)	0.17sec/60° (60RPM)
Stall Torque (4.8V)	17.2 kg.cm (240 oz-in)
Stall Torque (6.0V)	21.6 kg.cm (300 oz-in)
Stall Torque (7.4V)	25.2 kg.cm (350 oz-in)
Max PWM Range	500 - 2500 µsec
Max PWM Range (Continuous)	900 - 2100 µsec
Travel per µsec (out of box)	0.90°/µsec
Pulse Amplitude	3-5V
Direction	Clockwise w/ Increasing PWM Signal
Deadband Width	4 µsec
Motor Type	Brushed DC
Feedback Style	5KO Potentiometer
Output Shaft Support	Dual Ball Bearing
Gear Material	Steel
Wire Length	300mm
Wire Gauge	22 AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]
