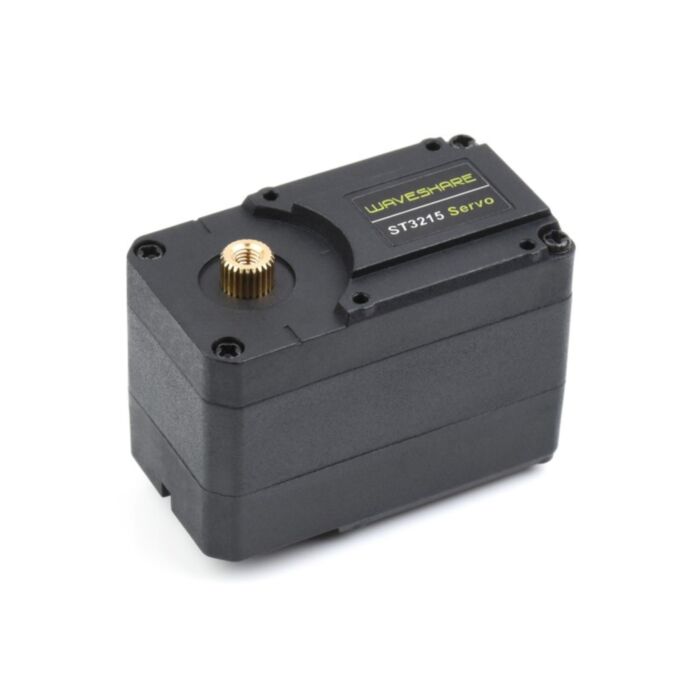

30KG Serial Bus Servo, High precision and torque, with Programmable 360 Degrees Magnetic Encoder

SKU: WS-22414 Brand: Waveshare
30KG Serial Bus Servo, High precision and torque, with Programmable 360 Degrees Magnetic Encoder, Two-way Feedback, Servo/Motor Mode Switchable...
$38.08 AUD, inc GST
$34.62 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 31 and Feb 03

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introducing the 30KG Serial Bus Servo, a high-precision, high-torque servo with a programmable 360° magnetic encoder and versatile features suitable for advanced robotics projects.

Specifications

Product Type ST3215 Serial Bus Servo
Torque 30kg.cm @ 12V
Rotation Angle 360° (0~4095)
Position Sensor Resolution 360° / 4096
Mechanism Limited Angle No Limit
Operating Voltage 6 ~ 12.6 V
Gear High-precision metal gear
No-load Speed 0.222 sec / 60° (45 RPM) @ 12V
Encoder Type 360° Magnetic Encoder
ID Range 0 ~ 253
Baudrate 38400 bps ~ 1 Mbps (1 Mbps by default)
Feedback Position, Load, Speed, Input Voltage
No-load Current 180 mA
Locked-rotor Current 2.7 A
Torque Constant (kt) 11 kg.cm/A

Application Examples

  • Provides feedback like position, speed, and torque for advanced closed-loop control.
  • Ideal for building quadruped robots, hexapod walkers, robotic arms, and other projects requiring multiple servos.
Quadruped Robot Example

* Images are for reference only.

UART Serial Bus Control

Control up to 253 serial bus servos simultaneously. Note: Ensure adequate power supply when using multiple servos. The servo driver board is NOT included.

UART Serial Bus Control

Large Torque

Up to 30kg.cm torque at 12V, perfect for robotic projects requiring strong and reliable servos.

Large Torque Demonstration

* Images are for reference only.

360° Magnetic Encoder

Adopts a 12-bit high-precision magnetic encoding angle sensor. This design extends the servo's lifetime by eliminating friction and gaps compared to potentiometers.

360° Magnetic Encoder Design

Acceleration Start-stop Function

The speed and acceleration values can be customized for smoother motion.

Acceleration Start-stop Function

Motion Effect Diagram

Motion Effect Diagram

Compact Structure Design

High-strength engineering plastic case with a dual-shaft, low-profile design for a more compact and aesthetically pleasing structure.

Compact Structure Design

One Button to Calibrate the Middle Position

Allows 360° installation at any position. A single button sets the current position as the middle, simplifying installation.

Calibration Example
