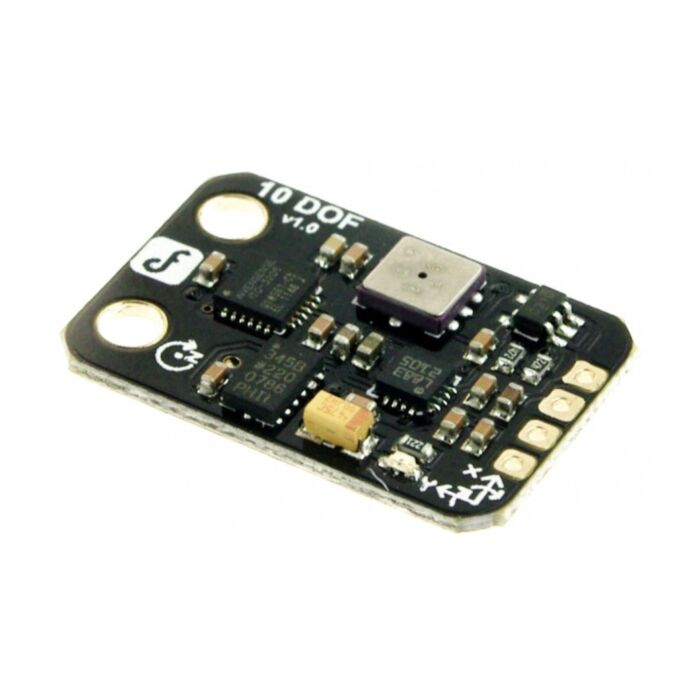

10 DOF Mems IMU Sensor

Rating:

100% of 100

1 Review

SKU: SEN0140 Brand: DFRobot

$65.90 AUD, inc GST

$59.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

6-12 $57.51 (exc GST)
12+ $55.72 (exc GST)

Introduction

At the beginning,the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerometers,gyroscopes, and magnetometers. Now IMUs are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in the Segway Personal Transporter as we all known.

The 10 DOF(degrees of the freedom) sensor is a compact and low cost IMU from DFRobot. It integrates the ADXL345 accelerometer, the HMC5883L magnetometer,the ITG-3205 gyro and the BMP085 barometric pressure sensor. It's suitable for most of the controlling system because of the small dimension. The mounting holes make it possible to provide the highly accurate and stable sensor data.It embeds a low noise LDO regulator for supplying a wide range power input.Works with 3~8 volts power input.Certainly,the 10 DOF sensor is directly compatible with your Arduino boards.

Applications

Aircraft
Balancing robots
Indoor inertial navigation
Altimeter
Human–computer Interaction (HCI)

Specification

Wide power input range from 3 to 8 volts
Low noise LDO regulator
Low cost IMU
Interface: I2C
M3x2 holes for easily mounted on your mobile platforms,robots,HCI or UAVs
LED power indication
Integrate 10 dof sensors
- Adxl345 accelerometer
- ITG3200 gyro
- HMC5883L Compass
- BMP085 pressure sensor
Compact size design and easy-to-use
Compatible with Arduino controllers
Electricity gold PCB
Size: 26x18mm

Shipping List

10 Dof Sensor 1unit
4P Pin Headers 1unit

Documents
