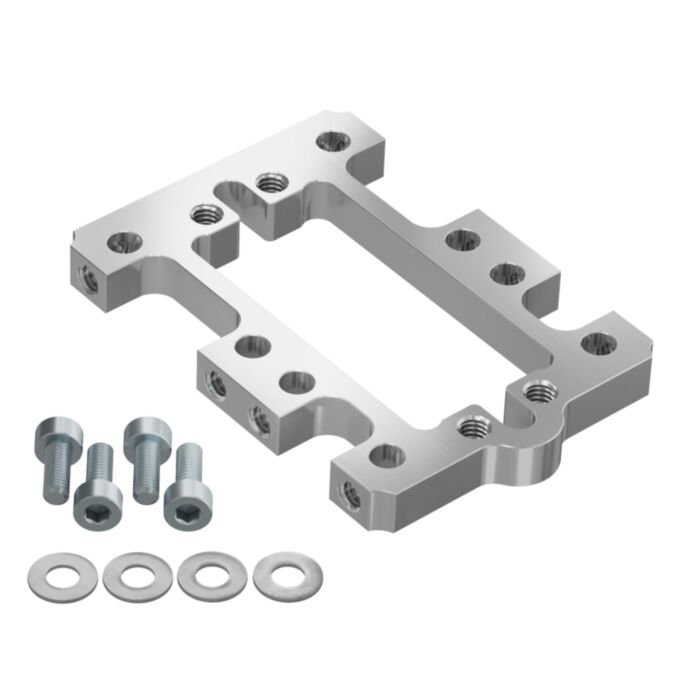

1802 Series Servo Frame (43mm Width, for Standard Size Servos)

SKU: GB-1802-0043-0001 Brand: goBilda

This servo frame works with standard size servos. The threaded holes on the sides allow the mount to be fastened inside 1120 Series Channel.....

$13.95 AUD, inc GST

$12.68 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 12 and Feb 17

Quantity Discounts:

10-25 $12.05 (exc GST)
25+ $11.42 (exc GST)

This servo frame works with standard size servos. The threaded holes on the sides allow the mount to be fastened inside 1120 Series Channel or can be used to tie two 1121 Series Low-Side Channels together.

The plethora of holes on each side allows you to align with the standard 32mm pattern, or the 24mm pattern between the 14mm holes of channel, both leaving the servo perfectly concentric with the 14mm hole above.

The threaded holes on the end of the channel can be used as an alternate method of fastening to the inside of channel, or, the thru-holes on the face can be utilized in combo with standoffs or spacers to create the exact-right height for your project!

Downloads

Specs

Weight	24g with included hardware
Material	Aluminum
Finish	Clear Anodized
Servo Compatibility	Standard Size
Included Hardware - Screws	10mm Length M4 Screws (4 screws)
Included Hardware - Washers	4mm ID x 8mm OD Washers (4 washers)

This product is listed in:

goBILDA>STRUCTURE>Mounts>Servo Mounts>Servo Mounts for Standard Size Servos
goBILDA>MOTION>Servos>Servo Mounts>Servo Mounts for Standard Size Servos
goBILDA>ELECTRONICS>Servos>Servo Mounts>Servo Mounts for Standard Size Servos
