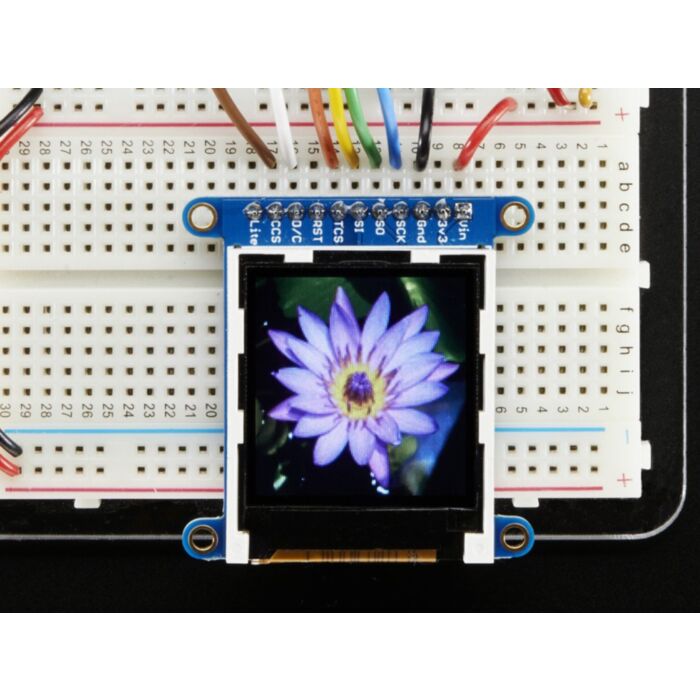

Adafruit 1.44 Color TFT LCD Display with MicroSD Card breakout - ST7735R

SKU: ADA2088 Brand: Adafruit
This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate...
$30.25 AUD, inc GST
$27.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 10-25 $26.67 (exc GST)
  • 25+ $26.13 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.44" display has 128x128 color pixels. Unlike the low cost "Nokia 6110" and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 16-bit color using Adafruit's library code.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as a ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. They also had a little space so they placed a microSD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card. The microSD card is not included, but you can pick one up here.

Of course, Adafruit wouldn't just leave you with a datasheet and a "good luck!" - Adafruit have written a full open source graphics library that can draw pixels, lines, rectangles, circles, text and bitmaps as well as example code and a wiring tutorial. The code is written for Arduino but can be easily ported to your favorite microcontroller!


Technical Details

Specifications:

  • 1.44" diagonal LCD TFT display
  • 128x128 resolution, 18-bit (262,144) color
  • 4 or 5 wire SPI digital interface
  • Built-in microSD slot - uses 2 more digital lines
  • 5V compatible! Use with 3.3V or 5V logic
  • Onboard 3.3V @ 150mA LDO regulator
  • 1 white LED backlight, transistor connected so you can PWM dim the backlight
  • 1x10 header for easy breadboarding
  • 4 x 0.9"/2mm mounting holes in corners
  • Overall dimensions: 33m x 45mm x 7mm / 1.3" x 1.8" x 0.3"
  • Mounting Holes: 36mm x 36mm / 1.4" x 1.4"
  • Weight: 10.6g
  • Current draw is based on LED backlight usage: with full backlight draw is ~25mA

Datasheets, Fritzing object, EagleCAD PCB files, etc in tutorial
