FEETECH High-Torque Servo FS5115M
Available with a lead time
Expect dispatch between Nov 28 and Dec 02
Quantity Discounts:
- 10-25 $31.17 (exc GST)
- 25+ $30.53 (exc GST)

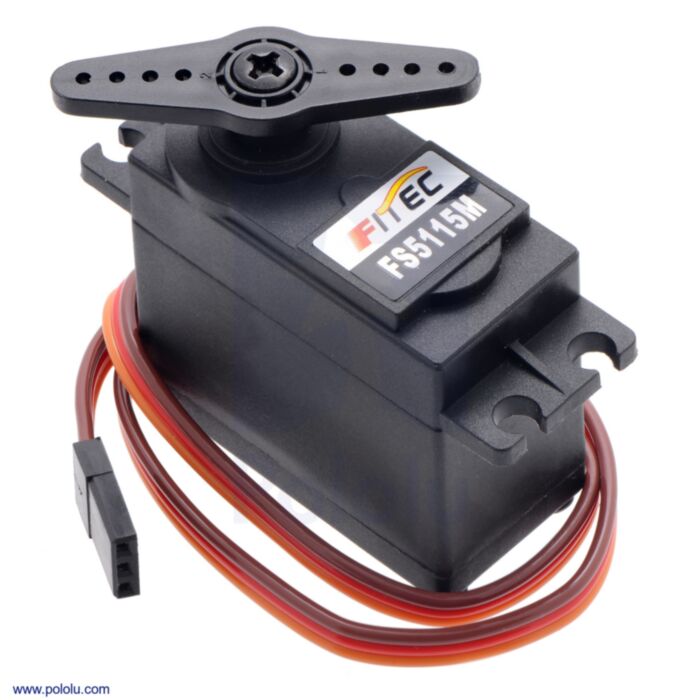

The FS5115M is a standard-size analog servo from FEETECH that can deliver more than twice the torque of Pololu's standard-size servos with plastic gears thanks to its powerful motor and all-metal gear train (if you need even more torque than this, check out the larger FT5335M giant servo). The output shaft is supported by two ball bearings for reduced friction. The FS5115M works with standard RC servo pulses, providing a running angle of approximately 180° over a servo pulse range of 500 µs to 2500 µs, and it has a 12" (30 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible. You can find more information about this servo in its datasheet (133k pdf).
|
|
For more advanced robotics applications, please note that Pololu also carry a version of this servo that is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, which lets you monitor the actual position of the servo from your controller:
 |
FEETECH High-Torque Servo FS5115M-FB with Position Feedback. |
|---|
This servo is also compatible with Pololu's Mounting Bracket for Standard-Size Servos:
 |
The picture below shows the all-metal gear train that helps the servo deliver such high torque:
 |
Note that, as with most hobby servos, stalling or back-driving this servo can damage it. This servo can draw bursts of current in excess of 3 A at 6 V, so please make sure you have an appropriate power supply. For comparison, a typical standard-size servo might draw around an amp when straining.
Comparison to the Power HD 1501MG high-torque servo
This servo is a lower-cost alternative to the 1501MG from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5115M and the 1501MG side by side:
 |
People often buy this product together with:
 | Micro Maestro 6-Channel USB Servo Controller (Assembled) |
Dimensions
| Size: | 40.8 × 20.1 × 38 mm |
|---|---|
| Weight: | 58 g |
General specifications
| Digital?: | N |
|---|---|
| Speed @ 6V: | 0.16 sec/60° |
| Stall torque @ 6V: | 15.5 kg·cm |
| Speed @ 4.8V: | 0.18 sec/60° |
| Stall torque @ 4.8V: | 14 kg·cm |
| Hardware included?: | Y |
| Lead length: | 12 in |
File downloads
