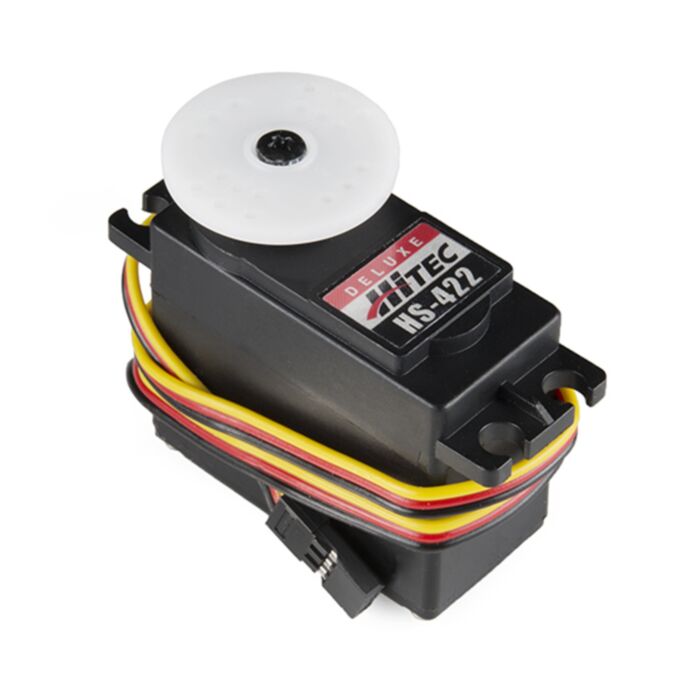

Servo - Hitec HS-422 (Standard Size)

Rating:
100% of 100
SKU: ROB-11884 Brand: Sparkfun
This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in. of maximum torque at 0.16 sec/60°, this is a simple servo for any beginner project!
$45.15 AUD, inc GST
$41.05 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 27 and Dec 02

Quantity Discounts:

  • 10-25 $39.82 (exc GST)
  • 25+ $38.99 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in. of maximum torque at 0.16 sec/60°, this is a simple servo for any beginner project!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-422 servo comes standard with a 3-pin power and control cable and all hardware listed below.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.82/56.93 oz-in. (4.8/6.0V)
  • Speed: 0.21/0.16 sec/60° (4.8/6.0V)
  • Direction: Clockwise/ Pulse Traveling 1500-1900usec
  • Rotation: 180°
  • Dual Oilite Bushing
  • Nylon Gears
  • 3-Pole Ferrite Motor
  • C1 Standard Spline

Includes:

  • 1x HS-422 Servo
  • 1x Circle Horn
  • 1x Double Arm Horn
  • 1x Single Arm (w/ Slide Bracket) Horn
  • 1x Four Point Horn
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions:

  • 40.6 x 19.8 x 36.6mm
  • Wire Length: 300mm
  • Weight: 45.5g

Documents:

This product is listed in:

Components & Parts>Motors>Servos>Standard
