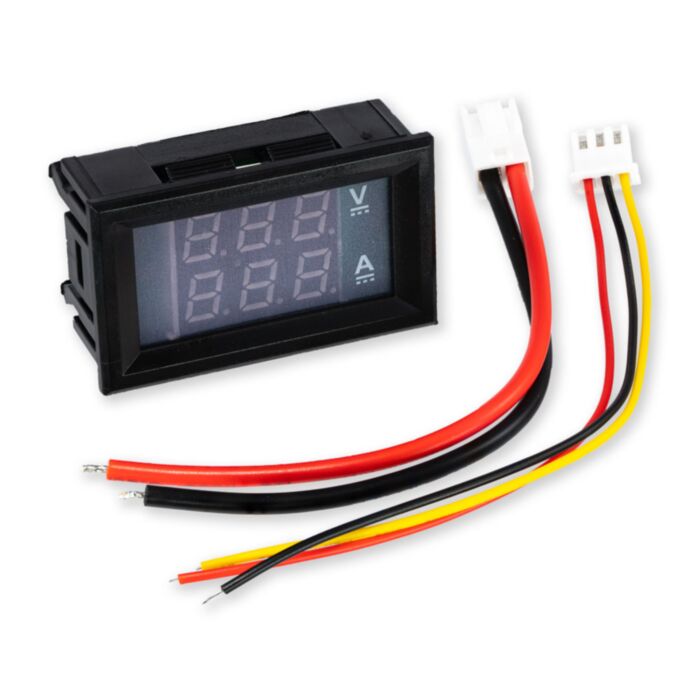

Dual Digital Display DC Voltmeter & Ammeter 0-100V 0-10A

Rating:
100% of 100
SKU: 018-05-VAM-100V10A-BL Brand: Core Electronics
An all in one solution for monitoring voltage and current.
$11.10 AUD, inc GST
$10.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Jun

Quantity Discounts:

  • 10-25 $9.69 (exc GST)
  • 25+ $9.38 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

An all in one solution for monitoring voltage and current.

Features:

  • Operating voltage:DC 4.5 ~ 30V
  • Measure voltage: DC 0 ~ 100V
  • Minimum resolution(V): 0.1V
  • Measure current :10A (measure directly, built-in shunt)
  • Minimum resolution(A): 0.01A
  • Operating current: <20mA
  • Display: three 0.28" LED digital tube
  • Display color: Red and Blue (two-color display)
  • Dimensions: 48 x 29 x 21mm
  • Mounting cutout: 45.5 x 26.5mm
  • Refresh rate: about 500mS / times
  • Measure accuracy: 1% (± 1 digit)
  • Operating temperature: -10 to 65° c
  • Operating Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 to 106 kPa

Wiring:

  • Black line (thick): vacant or buck circuit (module) negative
  • Red line (thick): power supply+
  • Black line (thin): COM, common measuring
  • Red line (thin): PW+, measuring terminal voltage input positive
  • Yellow line (thin): IN+, current input+
  • (Please refer to the wiring diagrams for more details)

Notice:

  • The voltage between the thick red and thick black lines must be within DC 4.5-30V
  • The ammeter can only be connected to the negative of the device under test
  • 10A and below ammeter (this model) has a built-in shunt and does not require external shunt
  • If long-term full load working continuously exceeds 5A it is recommended that the measurement side of the leads are directly soldered to the socket
  • When the black thick line is not connected it is recommended to use insulating tape around the exposed part of the wire to prevent short circuits
  • If used as a voltmeter alone it is recommended that the yellow line and the black line were connected together to prevent the ammeter digital flashing

This product is listed in:

Test Equipment>Panel Meters
