Compact ServoBlock™ (Standard Size, H25T Spline, Hub Shaft)

SKU: GB-3217-0001-2501 Brand: goBilda

This 25 tooth ServoBlock isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an.....

$49.15 AUD, inc GST

$44.68 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

10-25 $42.45 (exc GST)
25+ $40.22 (exc GST)

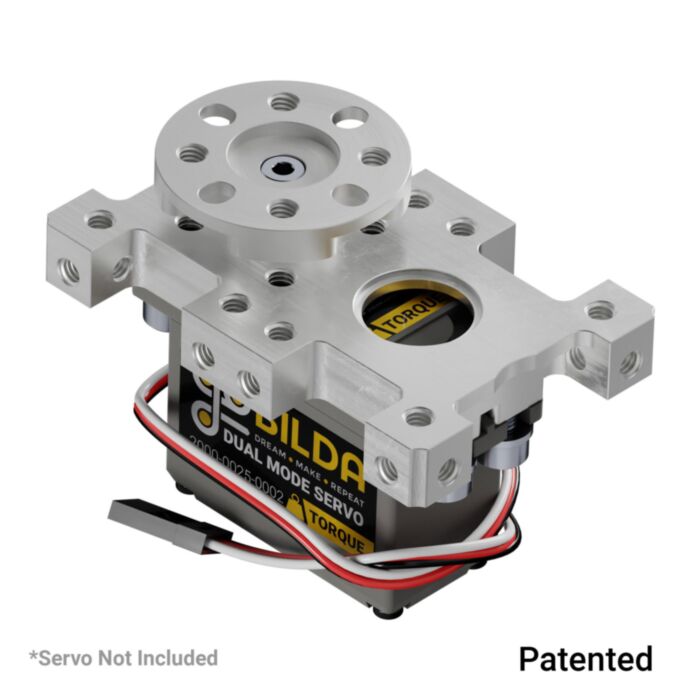

This 25 tooth ServoBlock® isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an integrated bearing to support its hub-shaft.

Threaded holes on its face and sides allow for a staggering array of mounting options. Meanwhile, its hub-shaft maintains the goBILDA® 16mm pattern of surrounding structure with thru-holes and threaded holes to provide for easy attachment of almost any goBILDA® component.

And thanks to the 43mm width of this ServoBlock®, you can do more than simply install it inside U-Channel. You can even incorporate 1120 Series U-Channel or 1121 Series Low-Side U-Channel into its structure to build an incredibly robust servo assembly!

It helps that the 14mm diameter protrusion of the integrated pillow block fits into the 14mm diameter holes of U-Channel. Consequently, when you’re using this ServoBlock® with a goBILDA® 2000 Series Servo, its hub-shaft rises 8mm from the face of channel!

Downloads

Specs

Weight	44g
IP	Patented
