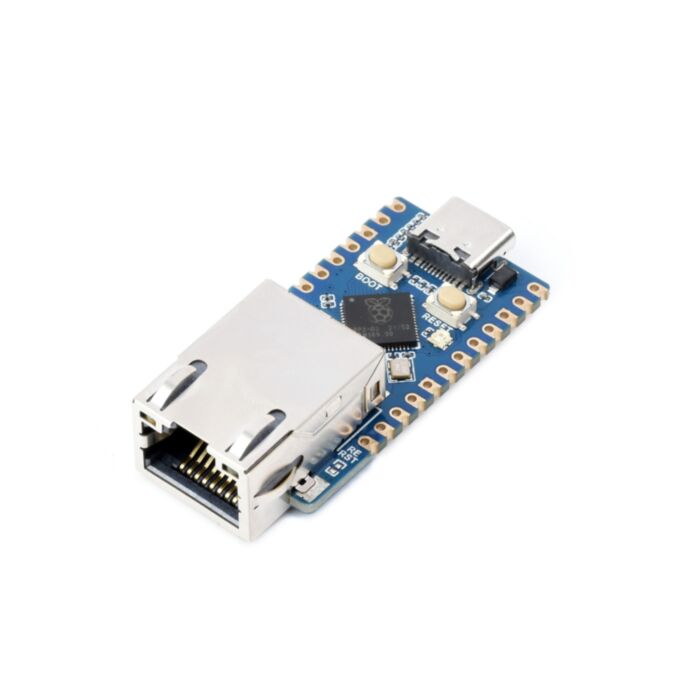

Waveshare RP2040-ETH Mini Development Board

SKU: WS-24082 Brand: Waveshare
Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official RP2040 Dual...
$21.75 AUD, inc GST
$19.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $18.98 (exc GST)
  • 25+ $18.39 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Featuring a dual-core Arm Cortex M0+ processor, running up to 133 MHz, and includes 264KB of SRAM with 4MB of onboard Flash memory. It integrates a CH9120 with a TCP/IP protocol stack for enhanced connectivity. With 14 multi-function GPIO pins, compatible with some Pico HATs, and a castellated design for easy soldering to carrier boards, it also incorporates a temperature sensor.

Specifications

  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of onboard Flash memory
  • Onboard CH9120 with integrated TCP/IP protocol stack
  • 14 × multi-function GPIO pins, compatible with some Pico HATs
  • Castellated module allows soldering direct to carrier boards
  • Temperature sensor

Pinout

What's On Board

  1. USB Type-C connector: Supports USB1.1 hosts and slave devices
  2. BOOT button: Press it when resetting to enter download mode
  3. RESET button
  4. RP2040: dual-core processor, up to 133MHz operating frequency
  5. RJ45 Ethernet port
  6. RT9013-33GB: 500mA Low Dropout, Low Noise, Ultra-Fast LDO
  7. W25Q32JVSSIQ: 4MB NOR-Flash
  8. CH9120: Ethernet serial port transmission IC


Dimensions

Resources

Shipping List

1 x RP2040-ETH
