7 HDMI Display with Capacitive Touchscreen

SKU: DFR0506 Brand: DFRobot

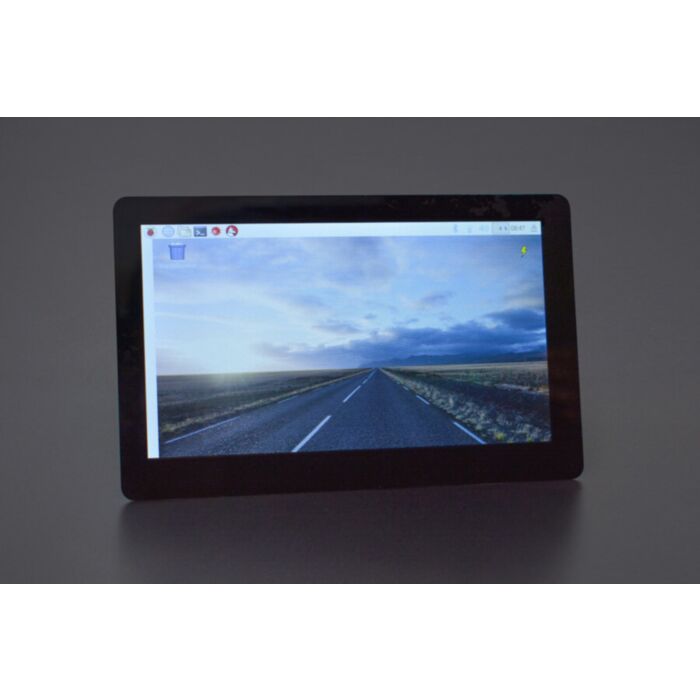

This is a 7" HDMI display with a capacitive touchscreen.
$139.95 AUD, inc GST
$127.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 5-10 $123.41 (exc GST)
  • 10+ $120.86 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a 7" HDMI display with a capacitive touchscreen. The touch panel supports up to 5 touch points via USB and adopts DFRobot USB free-driver technology, there is no special requirement for drivers. You can use it as easily as a keyboard or mouse. It can be directly plugged into a PC for touch control. Featuring a high-definition screen with HDMI interface, it can turn a large PC into a tablet immediately.

The screen supports Windows and Linux. It can be used on Lattepanda, Raspberry Pi, and other HDMI devices. We also made some special mounting holes to make it compatible with Arduino screw holes. You can mount them on the back of the display directly.

The display is powered directly via the USB connector. It only requires the USB for touch and power and the HDMI for display data. The display also supports backlight adjustment using the potentiometer on the back of the display.

Note: Please guarantee the external power supply current is above 1.5A@5V when it is driven by Raspberry Pi. Lower current will reduce the touch sensitivity.

Specification

  • Operating Voltage: 5V
  • Operating Current: 160mA (with HDMI connection)
  • Maximum Operating Current: 1200mA
  • Refresh Frequency: 43Hz (not recommended 60Hz, it will not be full screen)
  • Screen Resolution: 1024x600
  • Video Interface: HDMI
  • Dimensions: 183mm x 100mm/ 7.2" x 3.93"
  • Mounting hole size: 3.1mm x 6mm
  • Weight: 328g

Documents

Parts List

7'' HDMI Display with Capacitive Touchscreen x1
