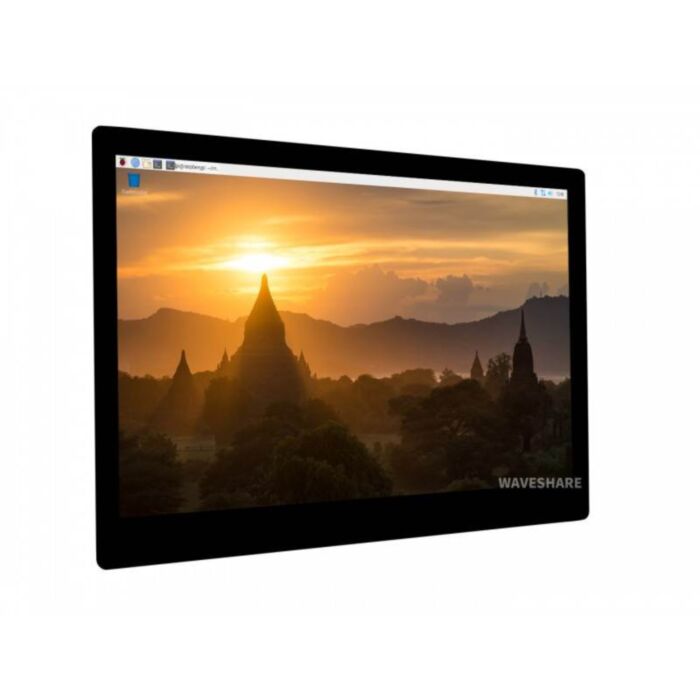

11.6inch Capacitive Touch Screen LCD, 1920×1080, HDMI, IPS

SKU: WS-17934 Brand: Waveshare
11.6inch Capacitive Touch Screen LCD With Toughened Glass Cover, 1920×1080, HDMI, IPS, Optical Bonding Screen, Various Devices & Systems Support
Special Price $273.55 AUD, inc GST
Regular Price $284.95 AUD, inc GST
$259.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 3+ $240.91 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

11.6inch Capacitive Touch Screen LCD with Toughened Glass Cover, 1920×1080, HDMI, IPS, Optical Bonding Screen, Various Devices & Systems Support

Note: 12V 1A Power adapter not included, we measured the plug to be 3.5mm OD 1.3mm ID

Features

  • Size - 11.6"
  • Resolution - 1920×1080
  • Port - HDMI
  • Display Panel - IPS
  • Viewing Angle - 178°
  • Touch Type - Capacitive
  • Touch Points -10-Points
  • Touch Port -USB
  • Touch Panel -Toughened Glass
  • OSD Menu -Brightness/Contrast
  • Audio Output -3.5mm Jack

Dimensions



  • Inner screen dimensions: 260mm W x 144mm H
  • Bezel dimensions: 1mm on top and sides, 21mm on bottom

Resources

Wiki for 11.6inch Capacitive Touch Screen LCD



Shipping List

  1. 11.6inch HDMI LCD (H) x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB-A to Micro-B cable x1
  5. Triangular stand x1
  6. Button board cable x1
  7. Button board x1
