Solar Lipo Charger (3.7V)

Rating:
96% of 100
SKU: DFR0264 Brand: DFRobot

This Solar lipo charger is designed for single Lithium battery (3.7V) for intelligent charging, with input reverse polarity protection. The maximum charging current is 500mA and the connection is simple and convenient. With a solar panel and lithium battery, you can quickly build a solar power system. Nowadays green power, for stationary or mobile projects is becoming highly requested.

$8.30 AUD, inc GST
$7.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $7.25 (exc GST)
  • 25+ $7.02 (exc GST)
- +

13 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

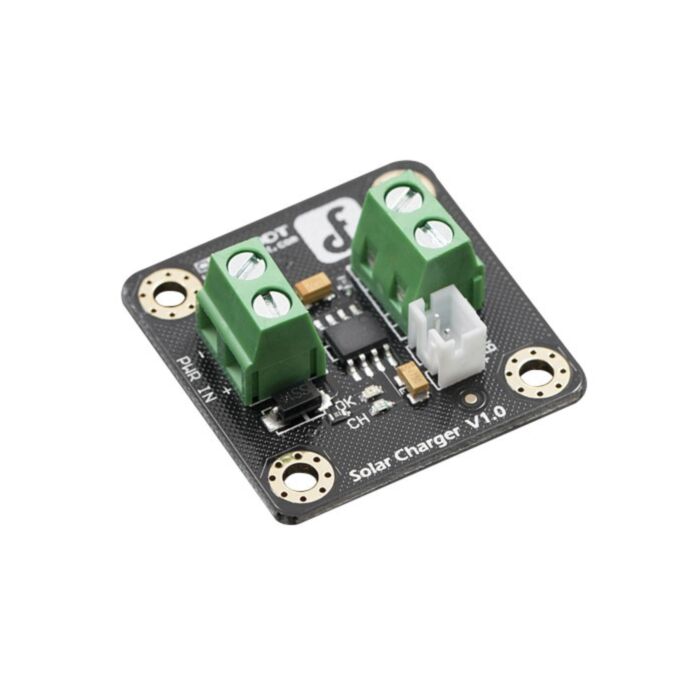

This Solar lipo charger is designed for a single Lithium battery (3.7V) for intelligent charging, with input reverse polarity protection. The maximum charging current is 500mA and the connections are easy (screw terminal for Solar/Power Out, and a JST PH for LiPo).

We see this module being used in projects for:

  • Remote sensors
  • Low power solar projects
  • Educational use

Specifications:

  • Input Voltage: 4.4 ~ 6V
  • Charging Current: 500mA Max (Depending on the solar panel supply capability)
  • Charging Cutoff Voltage: 4.2V
  • Operating Temperature: -40 ~ 85°C
  • Module Size: 33mm * 33mm * 12mm
  • Requisite battery: 3.7V lithium battery (Please note the maximum permissible charging current of the lithium battery)
  • Charging Indicator:
  • No Battery: Red LED Flashing
  • Charging: Red LED
  • Done: Green LED

Other useful parts (available separately):

Documents:

Parts List:

  • Solar Charger Module ×1
