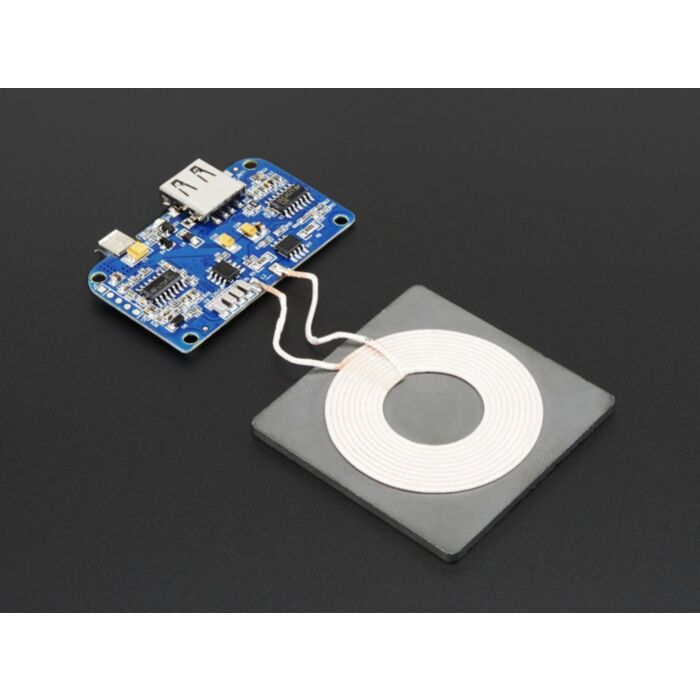

Universal Qi Wireless Charging Transmitter

SKU: ADA2162 Brand: Adafruit

This is a transmitter for many modern smart phones with the built-in trademarked 'Qi charging' wireless charging capability

$61.95 AUD, inc GST

$56.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

6-12 $54.63 (exc GST)
12+ $53.50 (exc GST)

If you have a modern smart phone you may have noticed that it comes with built in wireless charging capability called 'Qi charging.' Qi is a trademark name for a thin and smart inductive charging system. Many large gadget companies have standardized on Qi, which means it's easy to find a charging dish and Adafruit thought it might be cool if your Arduino project can recharge itself wirelessly.

Adafruit have added a ton of Qi receivers but, until now, Adafruit haven't had a charging base.No longer! This is a super simple Qi transmitter.It will work with any standard Qi charger receivers.You just connect the board to a 5v power supply - either through a micro USB port - then put your device w/ Qi receive onto the base. If you want to 'share' the microUSB power connection, you can also connect direct to the USB-A port

Maximum output is around 5W which is good for most smart phones, basically 1000mA charge at 5V on the other side of the wireless connection.It has a charging distance of 2-8mm, works with all Adafruit's Qi charge receivers. You can only use one receiver per transmitter so if you want to charge two Qi devices at once, you'll need 2 transmitters.

Note: PCB may come in blue or green!

Technical Details

Input: 5V
Input Current: 2A
Maximum output power of 5W
Operating Frequency: 100-200kHz
Charging Distance: 2-8mm
Charging Plate Dimensions: 53mm × 53mm × 4mm / 2.1" × 2.1" x 0.2"
PCB Dimensions w/ Components: 55mm × 37mm × 6mm / 2.2" × 1.5mm × 0.2"
Weight: 47g
