SOT23 to DIP Adapter

SKU: BOB-00717

$1.03 AUD, inc GST
$0.94 AUD, exc GST

More Views

SOT23 to DIP Adapter
1.03 AUD

SKU: BOB-00717

$1.03 AUD, inc GST
$0.94 AUD, exc GST
1 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Mon, 21st of Aug
Shipping Offer

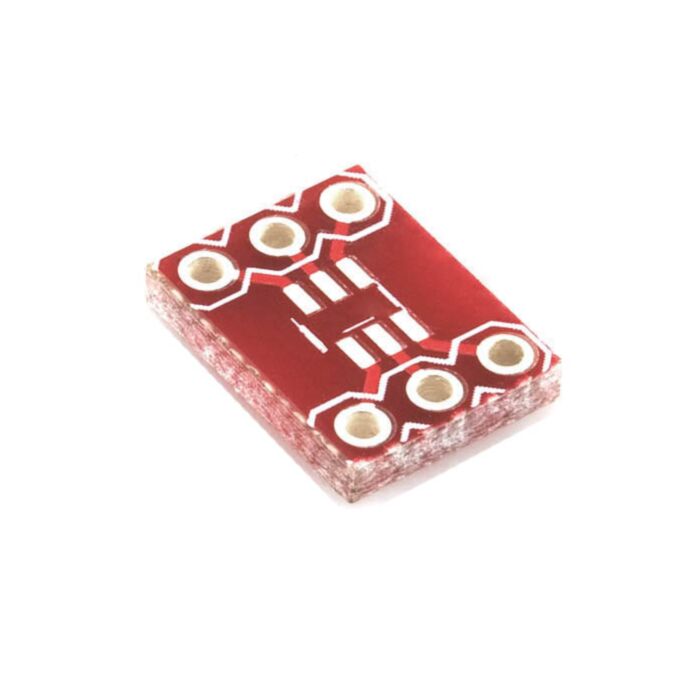

6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket.

Dimensions: 0.34x0.46"


40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.

Supported Devices: Pad layout fits all standard SOT23 packages including:

  • SOT-23
  • SOT-23-3
  • SOT-23-6
  • Micro3
  • 5-MicroSMD
  • All other similar SOT23 packages

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Dylan verified purchaser
    Rating
    100

    All the cool things come in SOT23! Good quality. (Posted on 7/12/2016)
