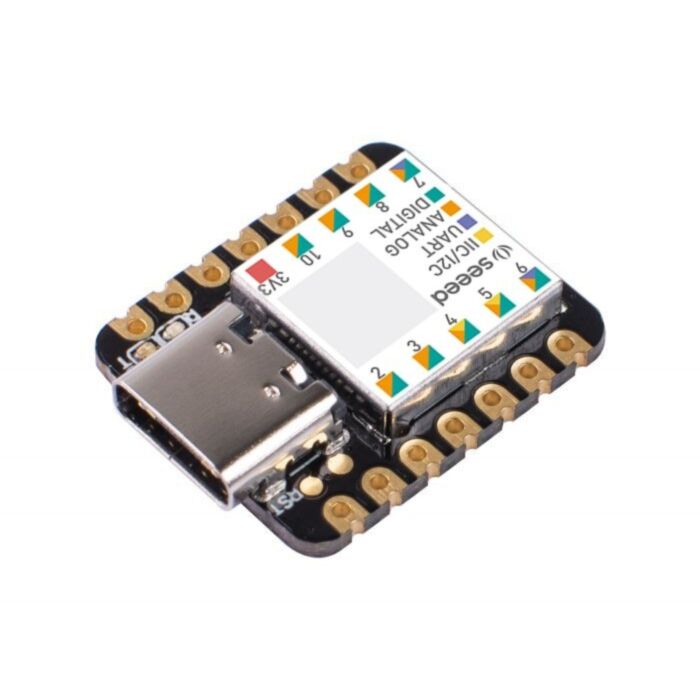

Seeeduino XIAO - Arduino Microcontroller - SAMD21 Cortex M0+

Rating:
100% of 100
SKU: SS102010328 Brand: Seeed Studio
Seeeduino XIAO is the smallest Arduino compatible board in Seeeduino Family. It is an Arduino microcontroller that is embedded with the SAMD21 microchip....
$10.90 AUD, inc GST
$9.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $9.51 (exc GST)
  • 25+ $9.22 (exc GST)
- +

21 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Seeed Studio XIAO Series is a family of compact development boards with a similar hardware structure that fits right in the palm of your hand. The XIAO code name represents its "Tiny" and "Puissant" features, making it a powerful yet small development board.

The XIAO SAMD21 is the pioneer product of the XIAO series, powered by a SAMD21G18 chip. Despite its size, it boasts high-performance capabilities, making it an excellent choice for electronics enthusiasts. It supports Arduino/Micropython/CircuitPython development, making it an ideal microcontroller to begin with.

The XIAO SAMD21 carries a powerful ARM® Cortex®-M0+ (SAMD21G18) CPU that runs at up to 48Hz. It also has 256KB Flash and 32KB SRAM on board and supports the USB Type-C interface that allows for code downloading and power supply.

Note: All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.

Applications

  • Wearable devices
  • Rapid prototyping (directly attached to the expanded PCB as a minimal system)
  • Perfect for all the projects that need a mini Arduino
  • DIY keyboard
  • USB development (USB to multi-channel TTL/USB host mode, etc.)
  • In a scenario where you need to read multiple mock values The DAC output

The XIAO SAMD21 features 14 GPIO pins, which offer a variety of functions. These include 11 analog pins, 11 digital pins, 1 I2C interface, 1 UART interface, and 1 SPI interface. Some of these pins also have multiple functions, such as A1/D1 to A10/D10 pins that have PWM functions, and Pin A0/D0, which can function as a DAC. This enables the XIAO SAMD21 to provide true analog signals instead of PWM signals when defined as an analog pin, allowing for more I/O pins and interfaces.

To improve the coding experience, a user LED has been added onboard, in addition to the power LED. Unlike other development boards of similar size, the XIAO SAMD21 features an extra 32.768KHz crystal oscillator for time fixing, which ensures a more accurate and stable clock.

The XIAO SAMD21 is highly compatible with various software platforms, making it easy for users to code with Arduino, Micropython, and CircuitPython. Its flexible I/O capabilities allow it to communicate with almost any external device, making it an ideal choice for diverse applications.

Features

  • High Performance: Powered by SAMD21G18 chip, operating up to 48MHz, equipped with 32KB of SRAM, and 256KB of onboard flash memory
  • Ultra-small Design: 21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices
  • Multiple Development Interfaces: 11x analog / 11x digital Pins, 1x I2C interface, 1x UART port, and 1 SPI port
  • Multiple Develop Platform: Support Arduino / Micropython / CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts
  • Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Specifications

Parameter Description
CPU ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
Storage 256KB Flash,32KB SRAM
I/O PINs 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
Interface 1 I2C interface,1 UART interface, 1 SPI interface, USB Type-C interface
LEDs 1 user LED, 1 power LED, and two LEDs for serial port downloading
Reset button two reset buttons short connect to reset
Software compatibility Arduino IDE
Dimensions 21x17.5 mm

Hardware Pinout

Part List

  • Seeed Studio XIAO SAMD21 x1
  • Pasters x4

Documentations

This product is listed in:

Arduino>Compatible Boards
