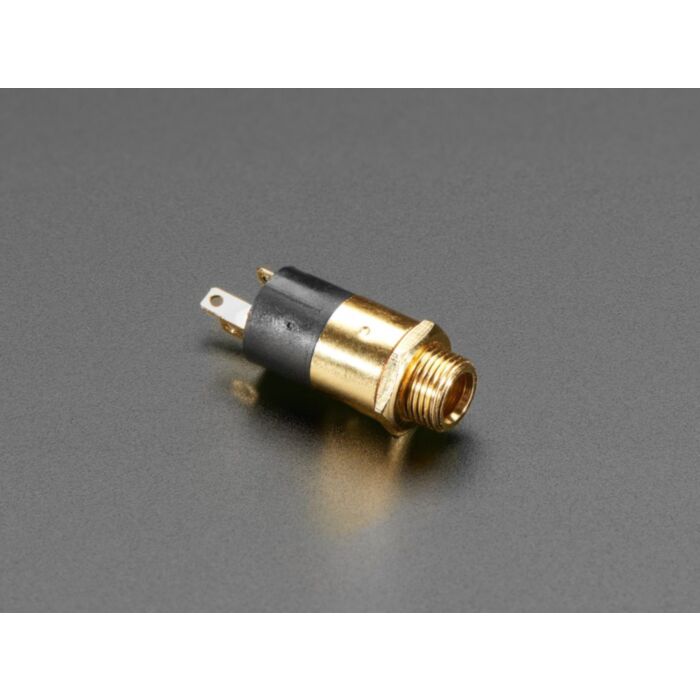

Panel Mount 1/8 (3.5mm) TRS Jack Connector

Rating:

100% of 100

SKU: ADA3692 Brand: Adafruit

What is this TRS bit? Turtle Rock Studios? Transmission Raman Spectroscopy? Not quite, more like Tip-Ring-Sleeve. This nifty, gold-plated connector is known by many...

$1.65 AUD, inc GST

$1.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

10-25 $1.44 (exc GST)
25+ $1.39 (exc GST)

What is this TRS bit? Turtle Rock Studios? Transmission Raman Spectroscopy? Not quite, more like Tip-Ring-Sleeve.

This nifty, gold-plated connector is known by many names, phone plug, phone jack, headphone jack, jack plug, etc. Used to transmit stereo audio signals, these connectors are a mainstay in audio equipment, especially speakers and microphones. For audio, tip is left channel, and ring is right channel, and the sleeve is ground.

Each jack comes with a slim, gold-plated body with three contacts to solder to and a panel mounting hex-nut.

TRS jack connectors don't have to be used only for audio! They make great general-purpose connectors where you need 2 or 3 signals and cheap, common cables. For example, in accessibility tech, these are often used to connect buttons or low voltage actuators.

Technical Details

Approximate dimensions:
- 7/8" long x 3/8" diameter
- 22.2mm long x 9.5mm diameter
Gold plated for superior connection
Ideal for chassis or panel mounting
Completely sealed jack, non-switching
Mounts in 1/4" hole (6.35mm) in panels up to 0.075" thick (1.9mm), comes with matching hex-nut

Product Weight: 2.0g / 0.1oz
