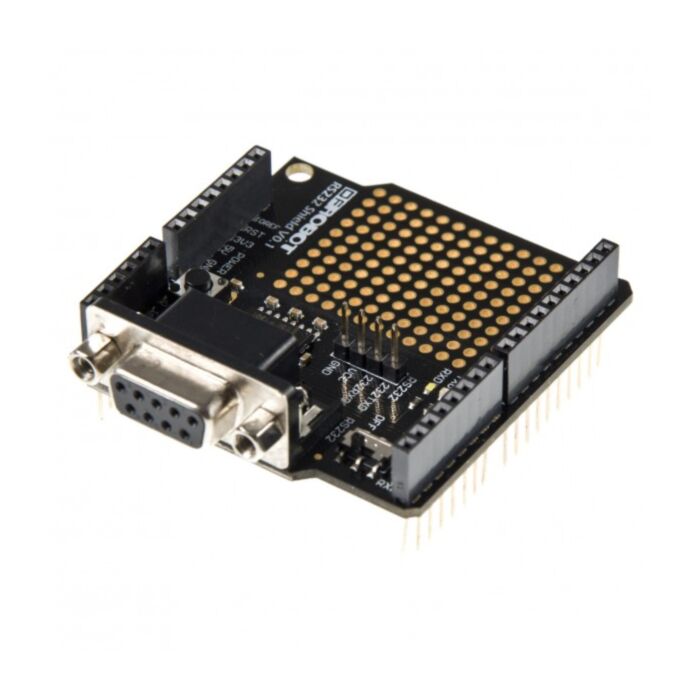

RS232 Shield For Arduino

Rating:

100% of 100

SKU: DFR0258 Brand: DFRobot

This RS232 shield is designed for the Arduino controller,and it can easily convert UART to RS232 interface. The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping. It provides a run / program mode switch. When switched OFF, you'll be able to programme the Arduino controller; When switched ON, you can use the shield normally. Gold immersion PCB. Long pins on the back that are compatible with most Arduino controllers.

$16.20 AUD, inc GST

$14.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $14.14 (exc GST)
25+ $13.70 (exc GST)

Introduction

Specification

Working Voltage: +5V
16 digital IO port (including a I2C interface)
6 analog IO port and power
Operation and programming mode switch
Transceiver indicating LED
DB9 connectors (female), RS232 pins
Weldable area
Reset switch
Module size: 55mmx53mm

Compability

Arduino UNO
Arduino UNO R3
Arduino Mega 1280/2560

Shipping List

RS232 shield *1

Documents

Product Comments

Start the conversation
