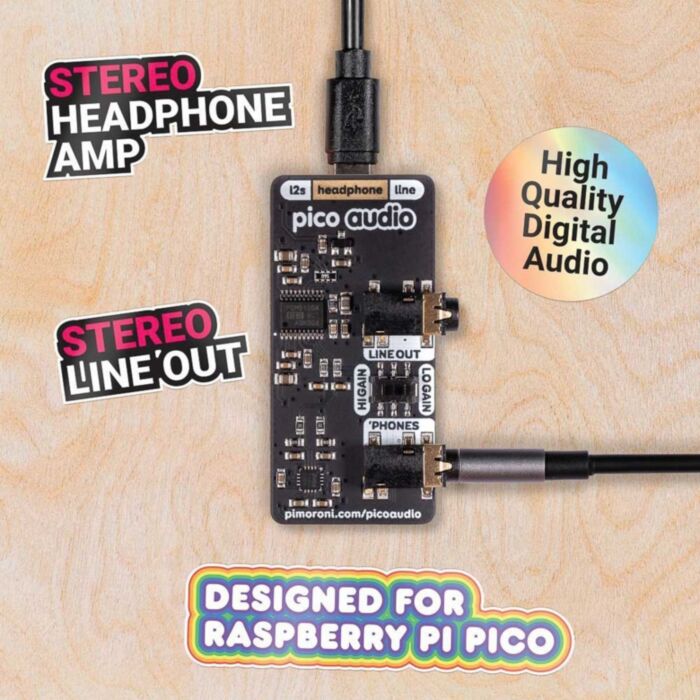

Pimoroni Pico Audio Pack (Line-Out and Headphone Amp)

SKU: PIM544 Brand: Pimoroni

Make some noise with this high quality stereo I2S audio add-on board for your Raspberry Pi Pico, with amplified headphone AND unamplified line level outputs!

$35.90 AUD, inc GST

$32.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 4th of Feb

Quantity Discounts:

10-25 $31.65 (exc GST)
25+ $31.00 (exc GST)

Recommended Essentials:

Raspberry Pi Pico H (With Headers)

$8.15

Make some noise with this high quality stereo I2S audio add-on board for your Raspberry Pi Pico, with amplified headphone AND unamplified line level outputs!

Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384KHz stereo audio along its 3.5mm line out connector, ready for plugging into an external amp or powered speakers. If you're after something a little louder for your ears, it can also pump out amplified stereo audio from its 3.5mm headphone jack.

You could generate interesting noises with code on your Pico to output into a lo-fi synth, or hook your Pico up to another device and use it as a custom USB sound card.

Please note that Pico Audio Pack only currently works with the C/C++ Pico SDK! We have Micro Python support planned but it is not available yet.

A Raspberry Pi Pico is not included - click here if you'd like to buy one!

Features

PCM5100A stereo DAC (datasheet)
PAM8908JER stereo headphone amp (datasheet)
3.5mm stereo headphone jack connector
3.5mm stereo line out jack connector
Switch to adjust headphone amp gain (low / high)
Pre-soldered female headers for attaching to Pico
Compatible with Raspberry Pi Pico
Fully assembled
No soldering required (as long as your Pico has header pins attached).
Dimensions: approx 53mm x 29mm x 11mm (L x W x H, including headers and audio jacks)
Pinout
Programmable with C/C++

The labels on the underside of Pico Audio will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board.

You can find our C/C++ libraries and code examples here.

About Raspberry Pi Pico
Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - Pimoroni are so excited to see what you make with it!

Pimoroni has called their Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish backpack (or a miniature jet pack, if you prefer). Pimoroni has also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!

Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.
