Adafruit I2S Stereo Decoder - UDA1334A Breakout

Rating:

100% of 100

SKU: ADA3678 Brand: Adafruit

This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. It's affordable but sounds great! The NXP UDA1334A is...

$14.85 AUD, inc GST

$13.50 AUD, exc GST

Quantity Discounts:

10-25 $12.96 (exc GST)
25+ $12.55 (exc GST)

Out of Stock

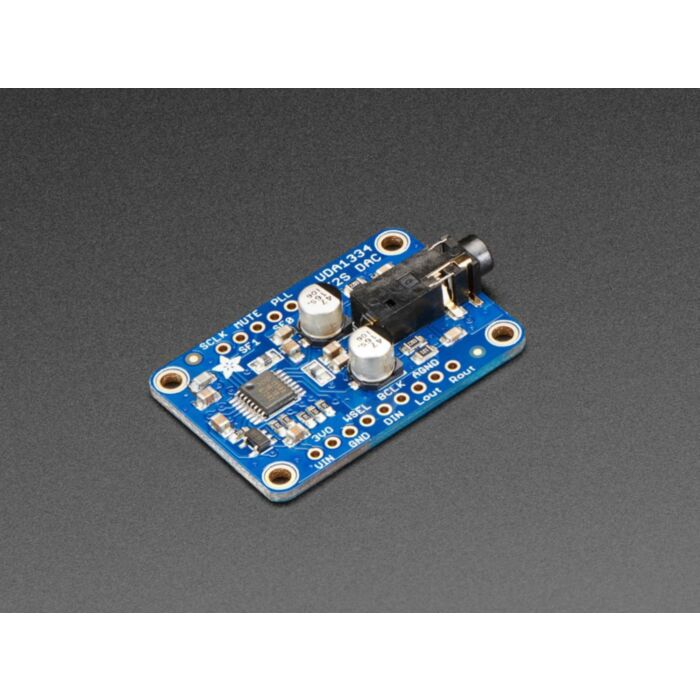

This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. It's affordable but sounds great! The NXP UDA1334A is a jack-of-all-I2S-trades: you can use 3.3V - 5V logic levels (a rarity), and can process multiple different formats by setting two pins to high or low. The DAC will process data immediately, and give you a clear, analog, stereo line level output. It's even cool with MCLK-less I2S interfaces such as the Raspberry Pi (which it's ideal for) - a built in PLL will generate the proper clock from the bitclock signal.

For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data. You can set it up to take an input system/master clock but Adafruit default-set it to just generate it for you, so you only need to connect Data In, Word Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a de-emphasis filter you can turn on.

Adafruit put in plenty of ferrite beads, a low-dropout regulator, and the recommended band-pass filter so you get a very nice clean output. With a sine-wave generator Adafruit swept through 20-20KHz and saw no attenuation or distortion. Plug into either the 3.5mm stereo headphone jack or the breadboard-friendly pads. We think you'll be pleased with this DAC!

Each order comes with one I2S Stereo DAC breakout and some header you can solder on. Check out Adafruit's detailed guide for wiring diagrams, schematics, code, setup info for Raspberry Pi and Arduino, and more!

Technical Details

Check out Adafruit's detailed guide for wiring diagrams, schematics, code, setup info for Raspberry Pi and Arduino, and more!

Product Dimensions: 40.0mm x 25.0mm x 7.1mm / 1.6" x 1.0" x 0.3"

Product Weight: 4.6g / 0.2oz

UDA1334A Datasheet
