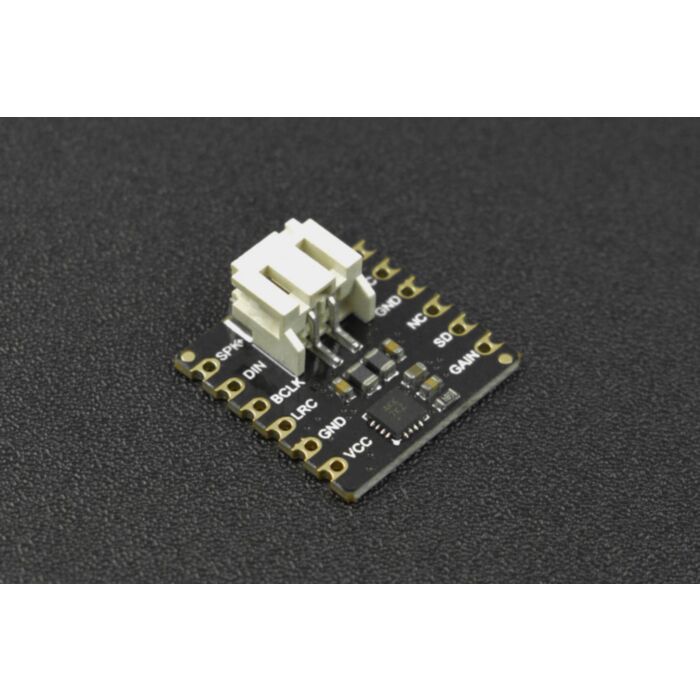

MAX98357 I2S Amplifier Module

Rating:
100% of 100
SKU: DFR0954 Brand: DFRobot
This I2S digital amplifier based on the MAX98357 I2S Class D amplifier module works great with microcontrollers with I2S audio outputs like ESP32 and can...
$9.50 AUD, inc GST
$8.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 10-25 $8.38 (exc GST)
  • 25+ $8.20 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This I2S digital amplifier based on the MAX98357 I2S Class D amplifier module works great with microcontrollers with I2S audio outputs like ESP32 and can be applied to projects like IoT nodes, smart home devices, Bluetooth audio players, and so on.

The module supports a 3.3V-5V power supply. And it can output over 2.5W of power when driven by 5V and a 4O speaker. Besides, it allows users to set different modes (off, left channel, right channel, and mixed) by changing the resistance on the SD port. The product defaults to mixed mode.

Featuring a small size, this I2S amplifier comes with stamp holes that enable it to be directly plugged into or mounted on a PCB and breadboard. Also, it is designed with PH2.0 and stamp holes for connecting speakers, flexible, and convenient to use.

MAX98357 I2S Amplifier Module

Features

  • MAX98357 I2S digital Class D amplifier, power >2.5W
  • 3.3V~5V voltage power supply
  • Switchable sound channel
  • Adjustable gain
  • Stamp holes design, support SMT and DIP
  • Two ways to connect a speaker: PH2.0 and stamp holes

Applications

  • Bluetooth Audio Player
  • IoT Node Audio Player
  • Smart Home Voice Interaction
  • Robotic Device Audio Player

Specification

  • Module Parameters
  • MCU: MAX98357A
  • Operating Voltage: DC 3.3V~5V
  • Output Power: 8O 1.8W / 4O 2.5W (at 12db)
  • Output Channel: single channel
  • Communication Interface: I2S interface
  • Operating Temperature: -40°C - +80°C
  • Storage Temperature: -40°C - +80°C
  • Dimension (Without Packaging): 18mm × 18mm/ 0.059 × 0.059
  • Sample Rate: 8kHz~96kHz
  • THD:
    • 0.02% (f = 1kHz, POUT = 1W, TA = +25NC, ZSPK = 4I + 33FH, TQFN)
    • 0.013% (f = 1kHz, POUT = 0.5W, TA = +25NC, ZSPK = 8I + 68FH)
  • Dynamic Range: 105DB (A-weighted, VRMS = 2.54V, 24- or 32-bit data)
  • Output Noise: 25FVRMS (A-weighted, 24- or 32-bit data (Note 4))
  • Gain (relative to the reference level of 2.1dBV):
    • GAIN_SLOT = GND through 100kO: Min 14.4dB, Typical 15dB, Max 15.6dB
    • GAIN_SLOT = GND: Min 11.4dB, Typical 12dB, Max 12.6dB
    • GAIN_SLOT = unconnected: Min 8.4dB, Typical 9dB, Max 9.6dB
    • GAIN_SLOT = VDD: Min 5.4dB, Typical 6dB, Max 6.6dB
    • GAIN_SLOT = VDD through 100kO: Min 2.4dB, Typical 3dB, Max 3.6dB
  • Efficiency: 92% (ZSPK = 8I + 68FH, THD+N = 10%, f = 1kHz, gain = 12dB)
  • DAC Gain Error: 1%
  • Frequency Response: ±0.2dB
  • Class D Switching Frequency: 330kHz
  • Spread Spectrum Bandwidth: ±12.5kHz

Documents

Parts List

  • 1x MAX98357 I2S Amplifier Module
