I2S microphone

SKU: CE10259 Brand: Core Electronics

Add a simple microphone to microcontroller or GPIO based projects

$12.30 AUD, inc GST

$11.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 17th of Mar

Quantity Discounts:

5+ $10.95 (exc GST)
15+ $10.62 (exc GST)

A digital audio sensor designed for sound capture in microcontroller-based projects. By providing a direct I2S (Inter-IC Sound) output, this module translates acoustic waves into digital data without the need for external pre-amplifiers or bulky analog-to-digital converters.

Traditional analog microphones often suffer from signal degradation and electrical noise, especially when routed near Wi-Fi antennas or motor controllers. This MEMS unit eliminates these frustrations by performing the analog-to-digital conversion directly on-chip, delivering a clean, noise-resistant signal straight to your dev-board using a universal protocol.

Features

Enjoy interference-free audio by utilising a direct digital I2S output that bypasses the hiss and hum of noisy analog-to-digital conversion stages.
Capture crystal-clear voice commands and subtle environmental sounds with a high 61 dB(A) signal-to-noise ratio, providing the clarity needed for speech recognition algorithms.
Simplify your power budget with an ultra-efficient design that draws less than 2mA of current, making it perfect for "always-on" listening in portable projects.
Integrate with ease into 3.3V logic systems, ensuring direct compatibility with modern development boards without the need for level shifting.

Specifications

Property	Specification
Interface Type	I2S (Inter-IC Sound)
Directionality	Omnidirectional
Operating Voltage	3.3V (1.6V to 3.6V Range)
Operating Current	<2mA
Signal-to-Noise Ratio (SNR)	61 dB(A)
Sensitivity	-26 dBFS
Frequency Response	50 Hz to 15 kHz
Form Factor	Bottom-port MEMS Module

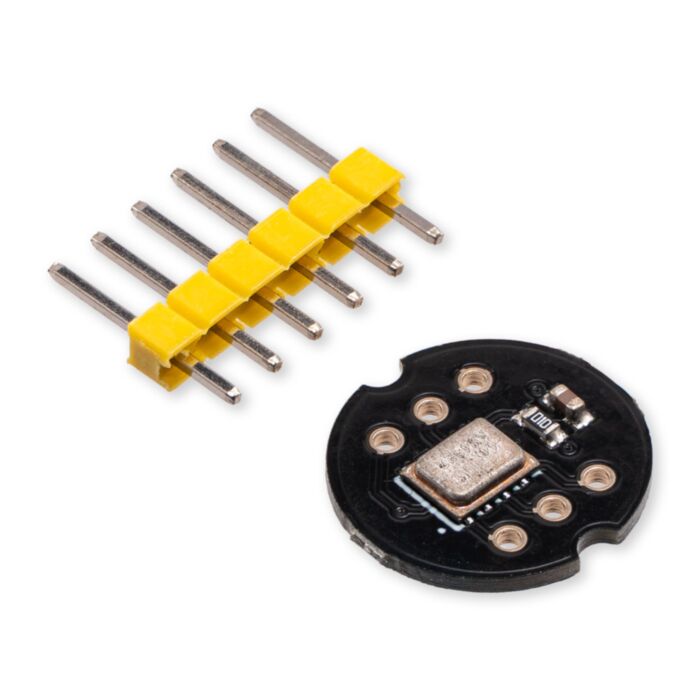

Product includes

I2S Microphone Module (INMP441)
1x6 Male Header

This product is listed in:

Sensors>Audio & Sound
Breakouts & Modules>Audio
