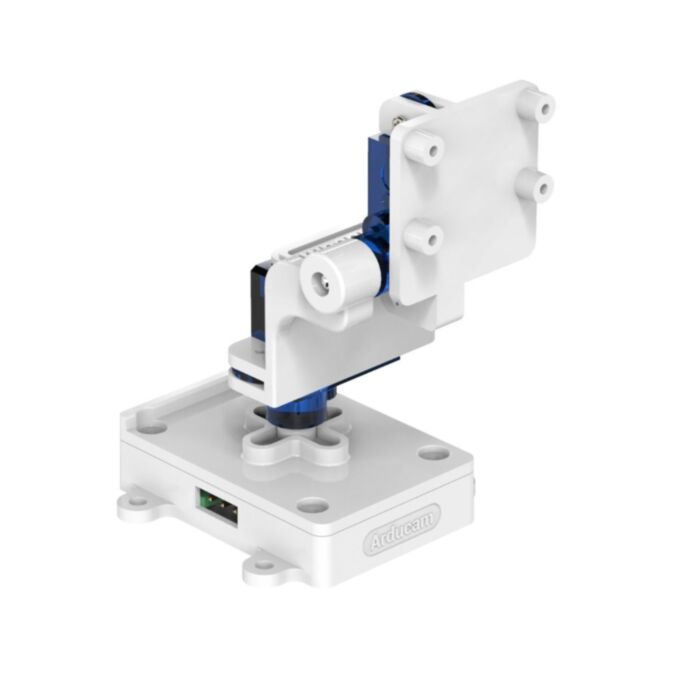

Pan Tilt Platform for Raspberry Pi & Nvidia Jetson Cameras
It can move the camera for pan and tilt directional control, and that means a single camera can be used to monitor places that should be covered by multiple ones.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec
Quantity Discounts:
- 10-25 $39.59 (exc GST)
- 25+ $38.78 (exc GST)
It can move the camera for pan and tilt directional control, and that means a single camera can be used to monitor places that should be covered by multiple ones.
Features
- Pan Tilt Kit: Specifically designed for a broader view on raspberry pi camera V3/V2/V1 and Arducam 16mp/64mp/Mini HQ cameras.
- More Coverage: Free 180° panning and tilting in a smaller PT bracket. Work with all Raspberry Pi models, as well as on Jetson Nano NX and other platforms (RPi demo only).
- Customized Control Board: I2C controlled, outputs the PWM signals to drive the servo motors directly, allowing the camera can be mounted in the base bracket.
- Mini Digital Servos: Two GH-S37D digital servos for a faster speed, higher torque and better holding capability (than analog servos).
- Only simple wiring for use. You'll be Getting: 1 set pan tilt bracket kit, 2 digital servo motors, a PTZ controller board (with 4 jumper wires), and a pack of screws.
Specification
Compatibility
Compatible with Multiple Cameras
Recommended cameras:
Arducam OV5647(B0033)/IMX219(B0390)/IMX477 Series (B0240)
Arducam 16MP camera (B0371)
Arducam 64MP camera (B0399)
Arducam Mini HQ camera (B0303R)
Digital Servo
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
- Operating Voltage: 3.6v~4.8v
- Operating Current: <350mA
- Dead Band: 3 usec
- Dimension: 20mm x 8.75mm x 22mm
Customized Control Board
- PWM resolution: 12-bit
- Communication interface: I2C
- Operating voltage: 3V-5V
- Dimension: 38mm x 28mm
Package Including
- 2 x Digital servos
- 1 set upgraded bracket pieces
- 1 x Customized control board
- 4 x Female to female jumper wires (The wire has no fixed color)
- 1 x Screws pack
- 1 x Manual
